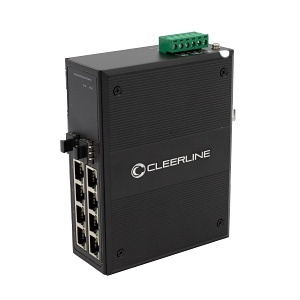

Cleerline SSF-2x8POE-RUGGED Industrial Gigabit Switch PoE+ 240W budget 8x 10/100/1000Base-Tx to 2x 1000Base-X SFP
SSF-2x8POE-RUGGED
|CC-F2X8POERU
Shop all Cleerline
Cleerline SSF-2x8POE-RUGGED Industrial Gigabit Switch PoE+ 240W budget 8x 10/100/1000Base-Tx to 2x 1000Base-X SFP
SSF-2x8POE-RUGGED | CC-F2X8POERU
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Cleerline™ SSF-2x8POE-RUGGED is a high-performance 2 x SFP to 8 x RJ45 Gigabit Ethernet switch designed for industrial applications, offering reliable performance and PoE+ support in extreme environments. This non-managed switch supports 10/100/1000Base-TX to 1000Base-X connections and provides PoE+ (30W per port) with a total power budget of 240W. Operating within a temperature range of -40 to 75°C, its rugged IP40-rated metal casing ensures durability and reliability in mechanically and electrically extreme conditions. The switch features a store and forward switching mechanism, auto-negotiation, auto MDI/MDI-X on every RJ45 port and supports IEEE 802.1Q Tag VLAN pass-through.The SSF-2x8POE-RUGGED includes strong surge protection (4kV ~ 8kV) per port and complies with various IEC and EN standards for industrial-grade equipment. It offers redundant DC power inputs (48-52V) for enhanced reliability and features reversed power polarity protection. With dimensions of 88 x 35 x 120mm and weighing 0.42kg, it is compact and easy to install via DIN rail or wall mounting. This switch supports a back-plane switching fabric of 20 Gbps, a MAC address table of 4K, and a packet buffer size of 1MB, making it an efficient solution for reliable data transmission and power delivery in industrial settings. External power supply required (SSF-DIN-48V120W-PS or SSF-DIN-48V240W-PS)
Main Features
- DC power input block 48-52V
- Extreme operating temperature: -40 to 75°C
- Rugged IP40 rated metal casing, DIN rail bracket
- Store and Forward switching mechanism
- Reversed power polarity protection
- Auto-Negotiation & Auto MDI/MDI-X on every RJ45 port
- 6kV surge protection per port
- IEEE 802.1Q Tag VLAN pass-through
- Redundant DC power inputs
- 240W total PoE power budget: 30W 802.3af/at per port
General Information
Name: Cleerline SSF-2x8POE-RUGGED Industrial Gigabit Switch PoE+ 240W budget 8x 10/100/1000Base-Tx to 2x 1000Base-X SFP
Category: Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 658580646257
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number CC-F2X8POERU Brand Name Cleerline Manufacturer Part Number CN-SSF-2X8POE-RUGGED Product Type Switch
