Chief RXF3 Fit X-Large Fixed Display Wall Mount for 49-98" Displays, Fixed TV Mount, VESA Wall Mount
RXF3|CJ-RXF3
Chief RXF3 Fit X-Large Fixed Display Wall Mount for 49-98" Displays, Fixed TV Mount, VESA Wall Mount
RXF3|CJ-RXF3
Key Features
What's Included
- Low profile 1.5" (38 mm) depth facilitates ADA compliance for typical AV design requirements
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
- Open wall plate allows for flexible positioning around power and data wall boxes
Key Features
What's Included
- Low profile 1.5" (38 mm) depth facilitates ADA compliance for typical AV design requirements
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
- Open wall plate allows for flexible positioning around power and data wall boxes
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- Low profile 1.5" (38 mm) depth facilitates ADA compliance for typical AV design requirements
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
- Open wall plate allows for flexible positioning around power and data wall boxes
Chief by Legrand
Chief RXF3 Fit X-Large Fixed Display Wall Mount for 49-98" Displays, Fixed TV Mount, VESA Wall Mount
RXF3 | CJ-RXF3
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

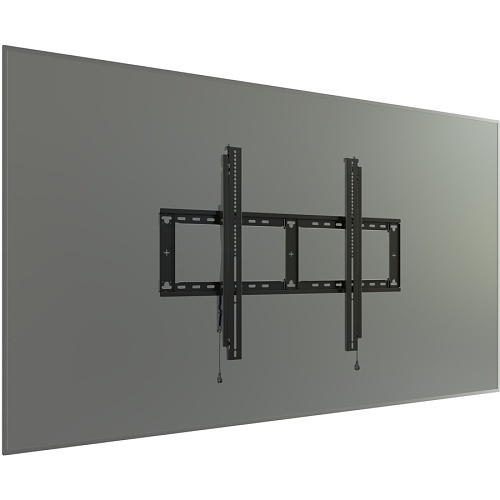

The Fit series RXF3 is an extra-large fixed display wall mount for 49" to 98" typical display sizes and supports mounting patterns up to 960x650mm. This next-generation design features 0.75" (19mm) post-installation leveling, robust wall plate design supporting up to 250 lb (113.4kg), 1.5" (38mm) low-profile depth, and UL and TUV safety standard approvals.
Main Features
- Low profile 1.5" (38 mm) depth facilitates ADA compliance for typical AV design requirements
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 960x650mm
- Re-designed rigid wall plate support up to 250 lb (113.4kg) and additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- UL and TUV safety standards compliant
General Information
Name: Chief RXF3 Fit X-Large Fixed Display Wall Mount for 49-98" Displays, Fixed TV Mount, VESA Wall Mount
Category: Chief by Legrand, Pro AV, Commercial Displays, Pro Display Accessories & Mounts
UPC Code: 841872176680
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number CJ-RXF3 Brand Name Chief by Legrand Manufacturer Legrand Group Manufacturer Part Number RXF3 Product Line Extra-Large Fit Product Name Extra-Large Fit Fixed Display Wall Mount Product Type Wall Mount
-
Device Supported Display Maximum Load Capacity 250 lb
-
TAA Compliant No
-
Application/Usage Wall Color Black Depth 1.5" Form Factor Wall Mount Height 27.1" VESA Mount Standard 960 x 650 Width 38"
-
Maximum Screen Size Supported 98" Minimum Screen Size Supported 49" Mount Profile Low Profile Mount Type Universal Mount
-
Country of Origin CN Features Flexible, Lateral Adjustment, Magnetic Pull/Release System Package Contents - Extra-Large Fit Fixed Display Wall Mount
- Leveling Screw
- Ball end Hex-Key
