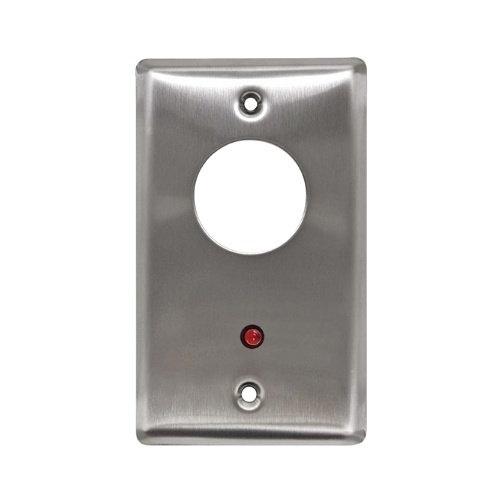

Camden CM-1200-7024 Key Switch, SPST Momentary, N/O, Red 24V LED Mounted on Faceplate
CM-1200-7024|CM-12007024
Camden CM-1200-7024 Key Switch, SPST Momentary, N/O, Red 24V LED Mounted on Faceplate
CM-1200-7024|CM-12007024
Camden Door Controls
Camden CM-1200-7024 Key Switch, SPST Momentary, N/O, Red 24V LED Mounted on Faceplate
CM-1200-7024Â |Â CM-12007024
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
'Camden Tough' stainless steel key switches are available in narrow and single gang widths. The pre-assembled switch mounting bracket is designed to minimize installation time. They accept virtually any 1" - 1-1/4" mortise cylinder and cam.
- Complete range of 1 and 2 switch SPST, SPDT and DPDT models, momentary and maintained
- Left and/or right operation
- Accepts standard mortise cylinders, 1" - 1-1/4"
- Heavy duty stainless steel faceplate
- Locators prevent cylinders from spinning
- Tamper proof screws supplied
- Indoor or outdoor application
- 3 year warranty
Main Features
- Heavy duty stainless steel faceplate
- Locators prevent cylinders from spinning
- Tamper proof screws supplied
- Indoor or outdoor application
- Left and/or right operation
General Information
Name: Camden CM-1200-7024 Key Switch, SPST Momentary, N/O, Red 24V LED Mounted on Faceplate
Category: Camden Door Controls, Access Control, Locking Devices, Key Switches
UPC Code: 670454161222
Country of Origin: Canada. Country of origin is subject to change.
Specifications
-
ADI Part Number CM-12007024 Brand Name Camden Door Controls Manufacturer Camden Door Controls Manufacturer Part Number CM-1200/7024 Product Name CM-1200-7024 Key Switch Product Series CM-1200 Product Type Keyswitch Switch Action Momentary Â
-
Application/Usage Door Frame, Indoor, Outdoor Depth 1.6" Depth (mm) 41 Form Factor Flush Mount Height 4.5" Height (mm) 114 Product Material Stainless Steel Width 2.8" Width (mm) 70 Â
-
Environmental Certification RoHS Environmentally Friendly Yes Package Contents - CM-1200-7024 Key Switch
- Cylinder Lock Ring
- 2 x Socket/Slotted Screws
- 2 x Tamper Proof Screws
