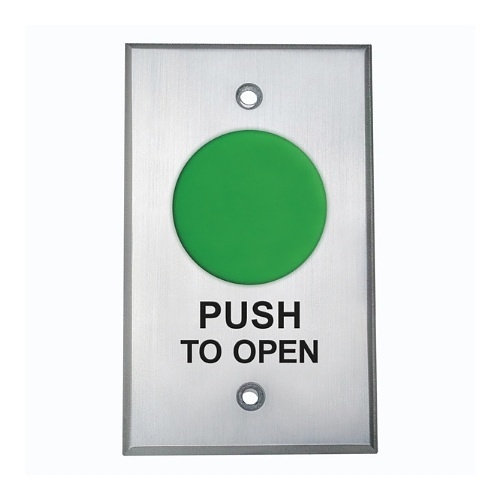

Camden CM-4000G/3 Spring Return, Normally Open, Momentary, Green Button, 'PUSH TO OPEN', Black Graphics

Brand: Camden Door Controls
ADI #:CM-4000G3 Model #: CM-4000G/3  Name: Camden CM-4000G/3 Spring Return, Normally Open, Momentary, Green Button, 'PUSH TO OPEN', Black Graphics
  • Indoor and outdoor applications
  • Red, green, or blue mushroom button
  • Large, paint filled engraved symbols or words on button
Camden CM-4000G/3 Spring Return, Normally Open, Momentary, Green Button, 'PUSH TO OPEN', Black Graphics

Product Overview

CM-4000 series mushroom push buttons feature large 1-5/8" (40mm), free-spinning buttons that are easy-to-activate. Available in red, blue, or green (black, yellow on request) and with various logos or words engraved on the button.

Faceplates are cast with heavy duty aluminum and available in single gang or narrow widths. Push button options are spring return, push/pull, and push/turn to release operation. May also be ordered with integrated pneumatic time delay. If no color is indicated, RED will be supplied.

General Information

Name : Camden CM-4000G/3 Spring Return, Normally Open, Momentary, Green Button, 'PUSH TO OPEN', Black Graphics , Camden Door Controls
Category : Request to Exit Devices
UPC Code : 670454186737
Country of Origin : Canada. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : CM-4000G3
Brand Name : Camden
Manufacturer : Camden Door Controls
Manufacturer Part Number : CM-4000G/3
Product Model : CM-4000G/3
Product Name : CM-4000G/3 Push Button
Product Series : CM-4000
Product Type : Push Button

Technical Information

Gang Type : Single Gang

Environmental Conditions

Maximum Operating Temperature : 158°F (70°C)
Maximum Operating Temperature (°F) : 158
Minimum Operating Temperature : -13°F (-25°C)
Minimum Operating Temperature (°F) : -13

Physical Characteristics

Application/Usage : Indoor/Outdoor
Depth : 1.7"
Depth (mm) : 44
Height : 4.5"
Height (mm) : 114
Material : Aluminum
Width : 1.7"
Width (mm) : 44

Power Description

Input Voltage : 12 V DC, 24 V DC, 30 V DC
Input Voltage (V DC) : 12, 24, 30

Product Information

Finishing : Brushed Aluminum
Print/Message : Push To Open

Warranty

Limited Warranty : 3 Year

Miscellaneous

Certifications & Standards : <ul> <li>ADA</li> <li>UL294</li> <li>ETL Intertek</li> </ul>
Features : Momentary On/Off Mode, Tamper Resistant
