Camden CM-4085G/7F Green Button Spring Return Double Pole Single Throw 1-60 Amp
CM-4085G/7F
|CM-4085G7F
Shop All Camden Door Controls
Camden CM-4085G/7F Green Button Spring Return Double Pole Single Throw 1-60 Amp
CM-4085G/7F | CM-4085G7F
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

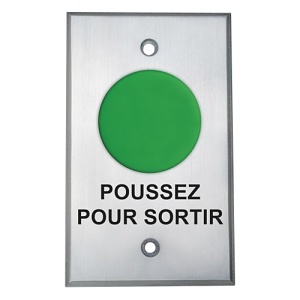

The CM-4085G-7F from Camden Door Controls is a spring return, DPST 1-60 sec pneumatic timer (ADA), green button with 'POUSSEZ POUR SORTIR', black. Camden Door Controls 4000 Series of push switches are heavy duty pushbuttons, specially designed and manufactured to meet the stringent demands of exit controls. buttons are available in either green, red, or blue, 1 0.6" diameter. They are supplied with a 0.2" thick brushed aluminum plate in 1 0.7" or 2 0.7" widths. Optional duranodic finish (US 40) is also available.No set screws are required, due to the bayonet interlocking of the modular assembly. buttons are free spinning, for additional protection against vandalism.The switches are Ul/CSA approved, rated at 6A at 30V DC. The design of the Camden Push button is modular, so that the contact block switches can be stacked to control up to six distinct functions simultaneously. They can be configured for either spring return (momentary), push / pull (maintained), or push/turn to release (maintained) operation. Optional 1-60 second pneumatic timer. Pneumatic timer features 6A at 30V DC form Z (N/O and N/C) contacts.
Specifications
ADI Part Number CM-4085G7F Brand Name Camden Door Controls Manufacturer Part Number CM-4085G/7F Product Series CM-4000/4100 Product Type 1-5/8" Pushbutton, Aluminum Faceplate
Maximum Operating Temperature 158°F Minimum Operating Temperature -13°F
Input Voltage 30V DC
Contact Type DPST Print/Message POUSSEZ POUR SORTIR
Limited Warranty 3-Year
Features 1/4" thick aluminum faceplate, 1-58" (40mm) diameter button, Indoor and outdoor applications, Vandal and tamper-resistant free-spinning button
