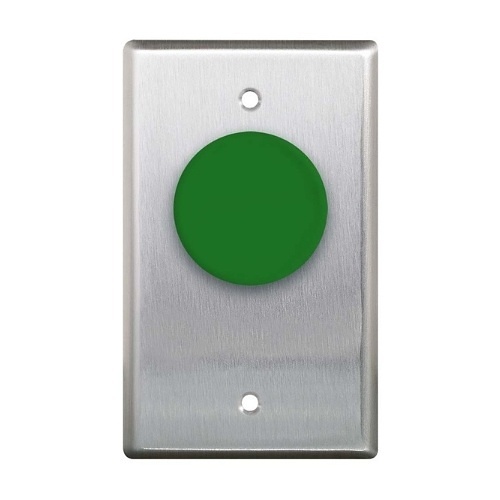

Camden CM-420G Single Gang Faceplate, N/O and N/C Contacts, Green Button
CM-420G|CM-420G
Camden CM-420G Single Gang Faceplate, N/O and N/C Contacts, Green Button
CM-420G|CM-420G
Camden Door Controls
Camden CM-420G Single Gang Faceplate, N/O and N/C Contacts, Green Button
CM-420GÂ |Â CM-420G
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
CM-400 Series mushroom push buttons are available in red, blue, or green (other colors on request), with a 1-5/8" (40mm) diameter. To protect against vandalism, the buttons are free-spinning. They are supplied with an industrial grade 18 gauge stainless steel faceplate.
Main Features
- 1-5/8" (40 mm) diameter button
- Vandal resistant free-spinning, heavy-duty button
- Vandal resistant 18 gauge stainless steel faceplate
- Single gang, double gang and narrow faceplates
- 3 year warranty with '2 for 1' replacement
General Information
Name: Camden CM-420G Single Gang Faceplate, N/O and N/C Contacts, Green Button
Category: Camden Door Controls, Access Control, Egress Devices, Door Release Buttons
UPC Code: 670454174680
Country of Origin: Canada. Country of origin is subject to change.
Specifications
-
ADI Part Number CM-420G Brand Name Camden Door Controls Manufacturer Camden Door Controls Manufacturer Part Number CM-420G Packaged Quantity 1 Product Model CM-420G Product Name Single Gang, N/O and N/C Contacts Product Series CM-400 Product Type Push Button Weight (Approximate) (g) 254.012 Â
-
Button Size 1.57" Button Size (mm) 40 Gang Type Single Gang Â
-
Application/Usage Door, Indoor/Outdoor Color Silver Depth 4" Depth (mm) 101.6 Height 4.8" Height (mm) 120.65 Material Stainless Steel Product Color Green Weight (Approximate) 8.96 oz Width 3" Width (mm) 76.2 Â
-
Input Voltage 24V DC Input Voltage (V DC) 24 Â
-
Limited Warranty 3 Year Â
-
ADA Compliant Yes Features Flush Mount, Heavy Duty, Momentary On/Off Mode, Vandal Resistant Package Contents - Single Gang, N/O and N/C Contacts
- 1 x Vandal resistant 18-gauge stainless steel faceplate
- 1 x Normally open and/or Normally closed, Contact block
- 1 x Parts kit
