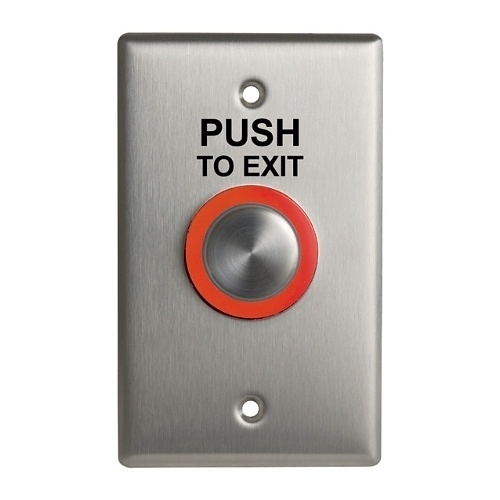

Camden CM-9600/7 Illuminated Piezoelectric 'Request to Exit Button', Stainless-Steel Faceplate, Single Gang
Camden CM-9600/7 Illuminated Piezoelectric 'Request to Exit Button', Stainless-Steel Faceplate, Single Gang
Camden CM-9600/7 Illuminated Piezoelectric 'Request to Exit Button', Stainless-Steel Faceplate, Single Gang
CM-9600/7 | CM-96007
Please sign in to view pricing and availability and to add to cart.
Product Overview
Camden Door Controls, CM-9600 and CM-9610 Series flush mount illuminated piezo push switches offer high visibility and weather/vandal resistance. The units feature a heavy duty stainless steel faceplate and adjustable 40 second timer. The CM-9600 is single gang (2 3/4”) width and the CM-9610 is only (1 3/4”) wide, perfect for door frames or narrow areas. The large 1” round diameter button is easy to activate. Illumination and power relay is 12 to 24V DC.
Switch illumination is jumper selectable for On, Off and Red, Green or non-lit operation. Field selectable for N/O, N/C contacts and fail safe/fail secure operation.
Main Features
- Rugged Stainless Steel Face Plate. Red and/or green illumination
- (1) N/C & (1) N/O Contacts, Rated 2 As at 24V DC
- Adjustable 0 - 40 Second Hold Open Timer
- Laser etched faceplate graphics
- 3 Yr. Warranty
- 1" Button Diameter
- Push To Exit Button Text
General Information
Specifications
-
ADI Part Number CM-96007 Brand Name Camden Door Controls Manufacturer Camden Door Controls Manufacturer Part Number CM-9600/7 Product Model CM-9600/7 Product Name Illuminated Piezoelectric Push/Exit Switch Product Series CM-9600 Product Type Push Button
-
Button Size 1" Button Size (mm) 25.4 Gang Type Single Gang Maximum Timer Duration 40 Second Maximum Timer Duration (Second) 40 Minimum Timer Duration 1 Second Minimum Timer Duration (Second) 1
-
Maximum Operating Temperature 179.6°F (82°C) Maximum Operating Temperature (°F) 179.6 Minimum Operating Temperature -40°F (-40°C) Minimum Operating Temperature (°F) -40
-
Color Silver Material Stainless Steel Product Material Stainless Steel Width 2.8" Width (mm) 69.85
-
Input Voltage 12V DC, 24V DC Input Voltage (V DC) 12, 24
-
Print/Message Push To Exit
-
Limited Warranty Lifetime
-
Environmental Certification RoHS Environmentally Friendly Yes
