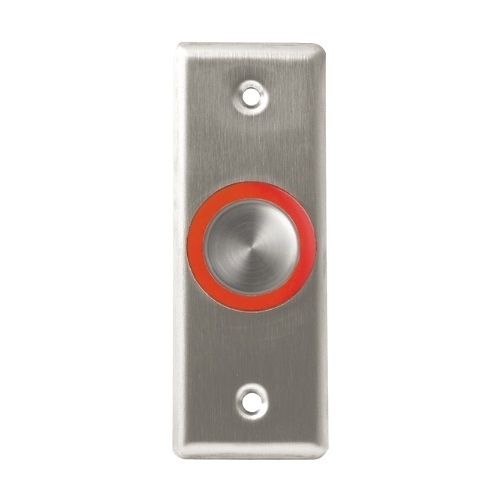

Camden CM-9610 Illuminated Piezoelectric Push Button, Narrow Faceplate, Blank
Brand: Camden Door Controls
ADI #:CM-9610
Model #: CM-9610
Name: Camden CM-9610 Illuminated Piezoelectric Push Button, Narrow Faceplate, Blank
- Rugged stainless steel face plate
- Red and/or green illumination
- Fail safe / non fail safe selectable
Product Overview
CM-9600 and CM-9610 Series flush mount illuminated piezo push switches offer high visibility and weather/vandal resistance. The units feature a heavy duty stainless steel faceplate and adjustable 40 second timer.
CM-9600 is single gang width (2-3/4") and the CM-9610 is only 1" & 3/4" wide, perfect for door frames or narrow areas. The large 1" round diameter button is easy to activate. Illumination and power relay is 12 to 24 VDC. Switch illumination is jumper selectable and may be set for On, Off, Green to Red, Red to Green or non-lit operation. Field selectable for N/O or N/C contact output and fail safe/fail secure operation.
General Information
Name : Camden CM-9610 Illuminated Piezoelectric Push Button, Narrow Faceplate, Blank , Camden Door ControlsCategory : Request to Exit Devices
UPC Code : 670454158574
Country of Origin : Canada. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : CM-9610
Brand Name : Camden
Manufacturer : Camden Door Controls
Manufacturer Part Number : CM-9610
Product Name : Illuminated Piezoelectric Push Button, Blank
Product Series : CM-9610
Product Type : Push Button
Weight (Approximate) (g) : 181.437
Technical Information
Button Size : 1"
Button Size (mm) : 25.4
Gang Type : Narrow
Physical Characteristics
Application/Usage : Door
Material : Stainless Steel
Weight (Approximate) : 6.40 oz
Power Description
Input Voltage : 12 V DC, 24 V DC
Input Voltage (V DC) : 12, 24
Warranty
Limited Warranty : Lifetime
Miscellaneous
Environmental Certification : RoHS
Environmentally Friendly : Yes
Features : Flush Mount, Heavy Duty, Piezoelectric Switch, Vandal Resistant, Weather Resistant
