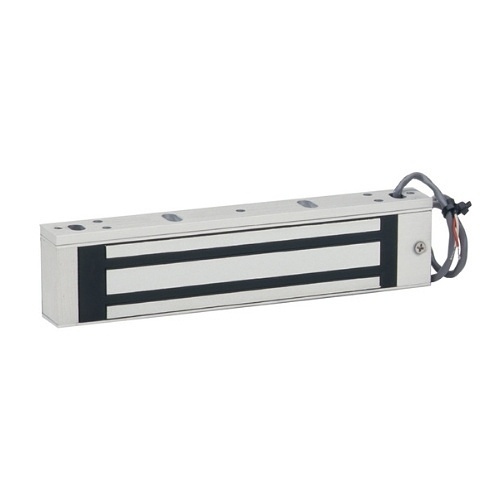

Camden CX-90S-03 300 lbs. Surface Mount Single Door Magnetic Lock

Brand: Camden Door Controls
ADI #:CM-CX90S03 Model #: CX-90S-03  Name: Camden CX-90S-03 300 lbs. Surface Mount Single Door Magnetic Lock
  • Weather and vandal resistant construction proven over thousands of installations
  • Surface and mortise mount models
  • Compatible with all access/egress systems
Camden 300 Lbs. Surface Mount Single Door

Product Overview

Camden CX-90 and CX-91 Series single door magnetic locks offer the best performance and value. There is a range of 300lb., 600lb. and 1200lb. models with the option of a built-in 'TDS' module that provide an adjustable timer, lock sensor, door status switch, relay and LED.

General Information

Name : Camden CX-90S-03 300 lbs. Surface Mount Single Door Magnetic Lock , Camden Door Controls
Category : Magnetic Locks
UPC Code : 670454150295
Country of Origin : China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : CM-CX90S03
Brand Name : Camden
Manufacturer : Camden Door Controls
Manufacturer Part Number : CX-90S-03
Product Line : eXACT
Product Model : CX-90S-03
Product Name : 300 Lbs. Surface Mount Single Door
Product Series : CX-90
Product Type : Magnetic Lock

Technical Information

Door Supported : Single Door
Holding Force (g) : 136077.711

Physical Characteristics

Form Factor : Surface Mount
Lock Depth : 0.83"
Lock Depth (mm) : 21
Lock Height : 1.38"
Lock Height (mm) : 35
Lock Width : 6.50"
Lock Width (mm) : 165
Material : Aluminum

Power Description

Input Current : 180 mA, 360 mA
Input Current (A) : 0.18, 0.36
Input Voltage : 12 V DC, 24 V DC
Input Voltage (V DC) : 12, 24

Product Information

Holding Force : 300 lb

Warranty

Limited Warranty : Lifetime

Miscellaneous

Certifications & Standards : UL and CUL listed
Compatibility : Access/Egress Systems
Features : Weather Resistant
