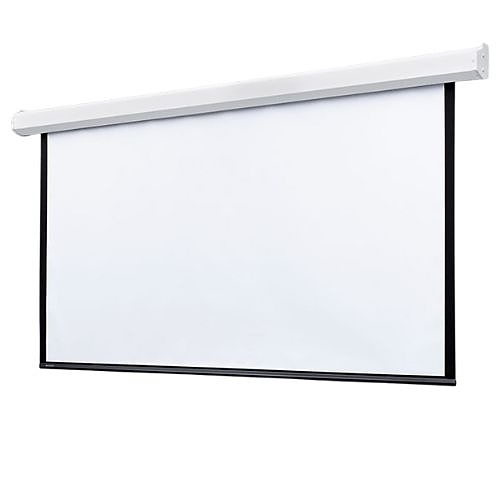

Product Overview
A popular and affordable electric project screen, Targa works well for auditoriums, conference and lecture halls, hospitals, hotels, boardrooms, and church applications. Housed in a pentagonal steel case with matching endcaps that form universal mounting brackets for easy wall- or ceiling-mounted installation. Free-hanging screens maintain flatness due to the weight of the screen and bottom dowel. Motor is mounted inside roller providing a clean, low-profile appearance.
Main Features

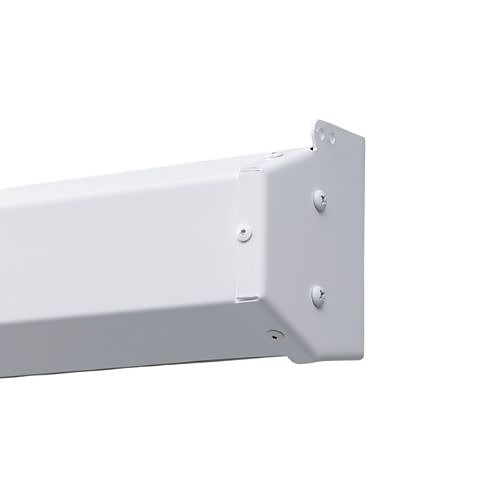

- Case dimensions: 5-7/8 in. high x 5-1/4 in. deep (15 cm x 13 cm). Optional built-in controls and extra drop may increase case length. Steel case with baked-on black plastisol finish (standard), white available upon request. Includes matching endcaps with universal mounting brackets.
- Maximum image width up to 12ft. (366 cm) wide, depending on surface selection.
- For larger sizes, the Premier XL is functionally similar to the Premier and is available in sizes through 16ft. (488 cm) wide.
- Image area fully framed with black. Standard 12 in. (30 cm) black drop at top of viewing area.
- Optional white aluminum ceiling trim kit available for recessed installation. Additional 12 in. black top drop recommended for ceiling-recessed installation.

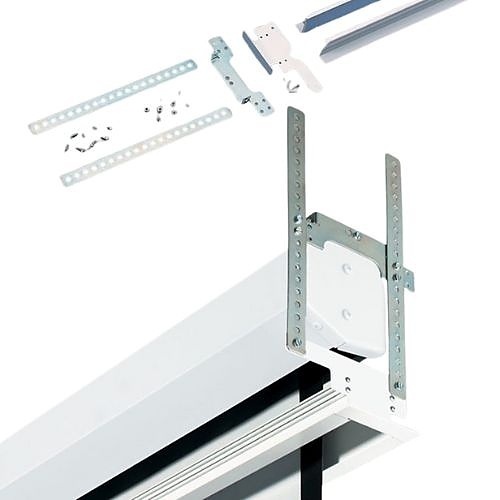

- Optional wall- or ceiling-mounting brackets for added flexibility.
- Rear projection surfaces available.
- Optional Plug & Play with built-in low-voltage controller (LP) or with built-in quiet, low-voltage controller (QLP). Screens over 119 in. diagonal on 16:9 format on this screen cannot use QLP.
- Includes one 110-120V, 3-position switch (standard). Other control options are available.
General Information
Name : Draper 116023U 161" Targa Electric Projection Screen with Low Voltage Motor, HDTV, Matte White , Draper
Category : Projection Screens
UPC Code : 999999521691
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : DF-116023U
Brand Name : Draper
Manufacturer : Draper, Inc
Manufacturer Part Number : 116023U
Product Line : Targa
Product Name : Targa, 161" , HDTV, Matt White XT1000E, 110 V, with LVC-IV Low Voltage Controller
Product Series : Targa
Product Type : Projection Screen
Weight (Approximate) (g) : 31751.466
Technical Information
Diagonal Image Size : 161"
Diagonal Image Size (mm) : 4089.4
Screen Fabric : Matt White XT1000E
Screen Folding Mechanism : Electric
Screen Height : 84"
Screen Height (mm) : 2133.6
Screen Width : 144"
Screen Width (mm) : 3657.6
Physical Characteristics
Weight (Approximate) : 70 lb
Product Information
Mount Type : Wall/Ceiling Mount
Warranty
Limited Warranty : 5 Year
Miscellaneous
Package Contents : <li>Targa, 161" , HDTV, Matt White XT1000E, 110 V, with LVC-IV Low Voltage Controller</li><li>Endcaps</li><li>Universal Mounting Brackets</li><li>1 x 110-120V 3-Position Switch</li>
