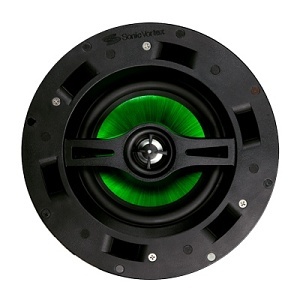

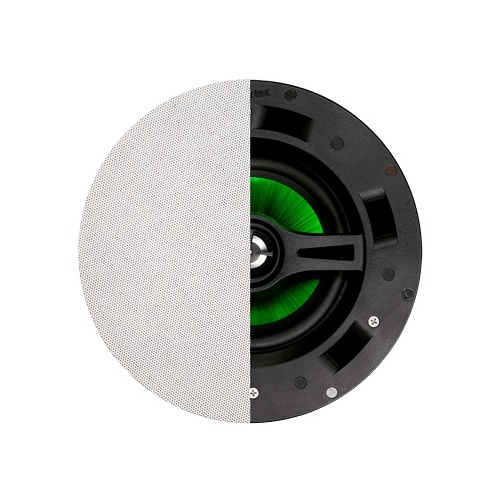

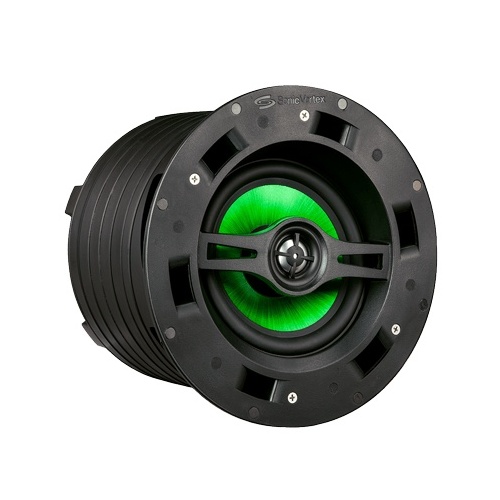

Beale Street ICA6-MB 6.5" 2-Way In-Ceiling Angled Speaker
Brand: Beale Street Audio
ADI #:DX-ICA6MB
Model #: ICA6-MB
Name: Beale Street ICA6-MB 6.5" 2-Way In-Ceiling Angled Speaker
- The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience
- Handles up to 5 W of RMS power
- Hear every detail crisp and clear with a frequency response of 46 Hz-22 kHz
Product Overview

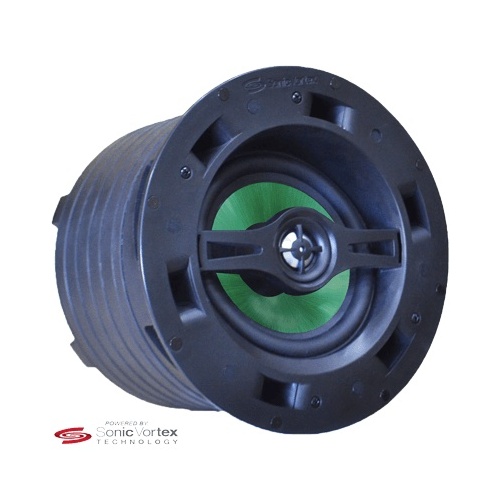

LCR angled in ceiling 6.5" 2-way speaker powered by Sonic Vortex®
Our Sonic Vortex® technology generates rich, deep bass and effortless clarity from what most people would call a 'back box', but is not. It is actually a compact, integrated tuned enclosure.
This patented technology is a 'twist' on Ported Transmission Line design, that optimizes air movement to produce astonishing sound. The enclosure also keeps sound from bleeding to other rooms while adding 6 to 9dB boost in mid-lower bass.
General Information
Name : Beale Street ICA6-MB 6.5" 2-Way In-Ceiling Angled Speaker , Beale Street AudioCategory : Speakers
UPC Code : 741835107778
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : DX-ICA6MB
Brand Name : Beale
Manufacturer : Beale Street Audio
Manufacturer Part Number : ICA6-MB
Product Model : ICA6-MB
Product Name : ICA6-MB Speaker
Product Type : Speaker
Technical Information
Crossover Type : 2-way
Impedance : 8 Ohm
Impedance (Ohm) : 8
Maximum Frequency Response (Hz) : 22000
Minimum Frequency Response (Hz) : 46
PMPO Output Power (W) : 120
Sensitivity : 89 dB
Sensitivity (dB) : 89
Speaker Size : 6.5"
Tweeter Driver Material : Aluminum
Tweeter Driver Size : 1"
Tweeter Driver Size (mm) : 25.4
Wireless Speaker : No
Woofer Driver Material : Ribbed Injected Polypropylene
Woofer Driver Size : 6.50"
Woofer Driver Size (mm) : 165.1
Audio
Maximum Frequency Response : 22 kHz
Minimum Frequency Response : 46 Hz
PMPO Output Power : 120 W
RMS Output Power : 5 W
RMS Output Power (W) : 5
Physical Characteristics
Color : Black
Cutout Diameter : 8.40"
Cutout Diameter (mm) : 213.36
Depth : 6.80"
Depth (mm) : 172.72
Diameter (mm) : 238.76
Form Factor : In-ceiling, In-wall
Woofer Diameter : 6.50"
Woofer Diameter (mm) : 165.1
Product Information
Diameter : 9.4"
Warranty
Limited Warranty : Lifetime
