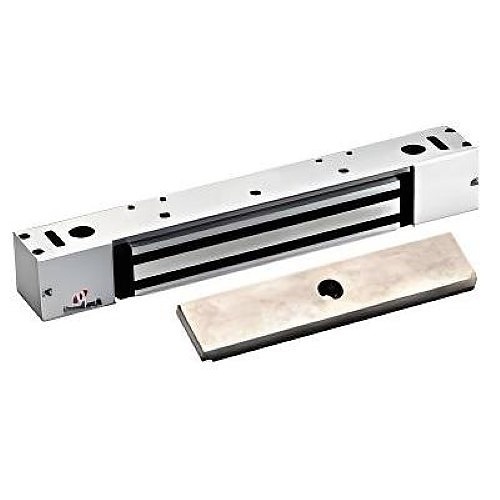

DynaLock 2268-20-DSM2-DYN2-LED2-US28 Double Magnetic Lock with Door Status Bond Sensor and LED
2268-20-DSM2-DYN2-LED2-US28
|DY-22682DSMD
Shop all DynaLock
DynaLock 2268-20-DSM2-DYN2-LED2-US28 Double Magnetic Lock with Door Status Bond Sensor and LED
2268-20-DSM2-DYN2-LED2-US28 | DY-22682DSMD
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Dynalock 226820DSM2DYN2LED2US28 is a full size 1200 lb. holdingforce electromagnet. It is designed for life safety and high security on rated or nonrated doors and frames. With a low 2 profile, the unit is perfect for opening heights of 7 or less to facilitate code compliance on designated egress doors.The 226820DSM2DYN2LED2US28 is field selectable for 12VDC or 24VDC.Specify the RC option for AC voltage operation. Surge suppression is built-in and 12 long color coded wire leads are provided for easy installation. Optional integrated door and lock status sensors allow remote monitoring without the need to install separate door contacts.The 226820DSM2DYN2LED2US28 is offered in a double armature model for outswinging doors. The coil and housing assembly mounts rigidly to the door frame while the armature mounts to the door in a manner that allows it to pivot slightly to compensate for door irregularities. When the door is closed and the lock is energized the armature is magnetically bonded to the lock face, thus securing the door without utilizing any moving parts.
Main Features
- Non-Handed - includes a convenient area for wiring connections on each end of the lock
- Adjustable mounting base reduces installation time and insures proper alignment
General Information
Name: DynaLock 2268-20-DSM2-DYN2-LED2-US28 Double Magnetic Lock with Door Status Bond Sensor and LED
Category: DynaLock, Access Control, Locking Devices, Magnetic Locks
UPC Code:
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number DY-22682DSMD Brand Name DynaLock Manufacturer Part Number 2268-20-DSM2-DYN2-LED2-US28 Product Name Dynalock 226820DSM2DYN2LED2US28 is a full size 1200 lb. holdingforce electromagnet Product Type Electromagnet
Compatibility 2" UL 10C fire-rated frames
