Product Overview

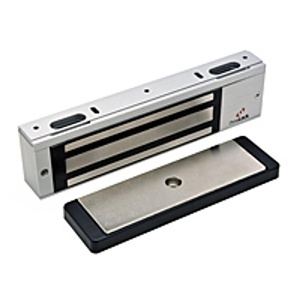

The Dynalock 3000-DSM-LP is a full size 1500 lb. holding force electromagnet. It is designed for life safety and high security on rated or nonrated doors and frames. Specify for commercial, industrial, or institutional openings where maximum security and durability is required. The unit features a satin aluminum finish.The 3000-DSM-LP is designed for ease of installation with DynaLocks exclusive FasTrak mounting system, field selectable voltage, and convenient wiring compartments. Optional integrated door and lock status sensors allow remote monitoring without the need to install separate door contacts.The 3000-DSM-LP is designed for single outswinging doors. The coil and housing assembly mounts rigidly to the door frame while the armature mounts to the door in a manner that allows it to pivot slightly to compensate for door irregularities. When the door is closed and the lock is energized the armature is magnetically bonded to the lock face, thus securing the door without utilizing any moving parts.The unit is equipped with a door status switch and a low power coil.
Main Features
- One Piece Housing made from high strength aluminum. A seamless housing means maximum resistance to weather and tampering
- Satin aluminum finish
- Low power coil - 12V at 0.16A (single lock)
- Door status switch - signals if a door is closed or ajar
- Mounts to the underside of the frame header
- Low power consumption conserves energy, reduces operation cost, and extends battery backup time
- A totally plated coil and armature provides protection against corrosion
- A narrow backset of 1-0.5" may mean the elimination of other mounting brackets or filler plates
- No residual magnetism - the door releases without delay when lock is de-energized
- Built-in spike suppression protects other solid state components within the system from damage when the lock is de-energized
General Information
Name: DynaLock 3000DSMLP 3000 Series 1500 lb Magnetic Lock With Door Status Sensor, Satin Aluminum
Category: DynaLock, Access Control, Locking Devices, Magnetic Locks
UPC Code:
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number DY-3000DSMLP Brand Name DynaLock Manufacturer Part Number 3000DSMLP
