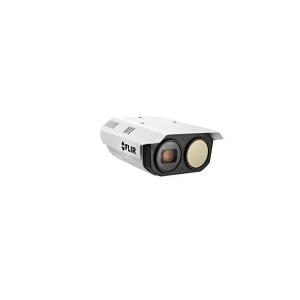

FLIR 427-0102-21-00 Outdoor Thermal Imaging IP Camera, 9mm Lens, 640 x 512 Resolution
427-0102-21-00
|FK-427010221
Shop All Teledyne FLIR
FLIR 427-0102-21-00 Outdoor Thermal Imaging IP Camera, 9mm Lens, 640 x 512 Resolution
427-0102-21-00 | FK-427010221
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The 427-0102-21-00 from Flir is a 640 x 512 network outdoor thermal imaging camera with 9mm Lens. The FLIR is ruggedized, a multispectral fixed camera that integrates industry-leading thermal imaging with 4K visible imaging to provide rapid visual verification of hot spots in early fire detection applications. When a hot spot or temperature change is detected, the contactless temperature measurement is sent to the operator through a connected Video Management System (VMS) for instantaneous assessment and deployment of response tactics. Custom scheduling provides security personnel the flexibility to enable and disable alarms depending on business hours and seasonality. Combining the power of thermal hot-spot detection with intelligent vehicle detection, false alarms from hot exhaust pipes can be dramatically reduced.
Specifications
ADI Part Number FK-427010221 Brand Name Teledyne FLIR Manufacturer Part Number 427-0102-21-00
Connectivity Technology Wired Lens Type Fixed Maximum Aperture f/1.4 Night Vision Yes Video Formats H.264, MJPEG, MPEG4 Video Signal Format NTSC/PAL
Ingress Protection Rating IP66, IP67
Maximum Operating Temperature 158°F Minimum Operating Temperature -40°F Operating Humidity 95%
Minimum Illumination 0.25 lux
Focal Length 9mm Maximum Focal Length 9mm
Durability Vandal Resistant, Weather Resistant
Input Voltage 12V DC, 24V AC, 24V DC
Environmental Certification CE, FCC, RoHS, WEEE Environmentally Friendly Yes Features Combines a two-camera installation in one physical connection for a cost-efficient solution, Detect hot spots instantly with FH-Series R camera models that feature up to 640 x 512 thermal resolution and 35 mK thermal sensitivity, Integrates a high-resolution thermal and visible sensor for hot-spot detection and visual verification from a single device, See the smoke and immediately verify threats with the 4K visible camera Impact Protection Rating IK10
