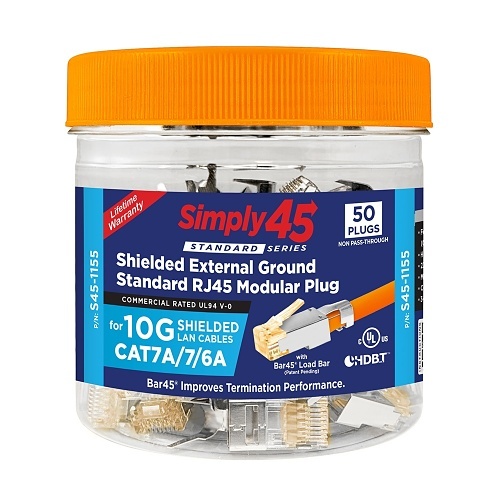

Simply45 S45-1155 Standard Series Shielded External Ground Standard RJ45 Modular Plug for 10G STP LAN Cables CAT7a/7/6a, Standard WE SS RJ45 with Bar45, 40-Piece Plastic Jar, Orange Tint
Simply45 S45-1155 Standard Series Shielded External Ground Standard RJ45 Modular Plug for 10G STP LAN Cables CAT7a/7/6a, Standard WE SS RJ45 with Bar45, 40-Piece Plastic Jar, Orange Tint
Simply45 S45-1155 Standard Series Shielded External Ground Standard RJ45 Modular Plug for 10G STP LAN Cables CAT7a/7/6a, Standard WE SS RJ45 with Bar45, 40-Piece Plastic Jar, Orange Tint
S45-1155Â |Â G0-S451155
Please sign in to view pricing and availability and to add to cart.
Product Overview
Simply45®is the industry-leading brand for RJ45 modular plug innovation and performance solutions.
Up until now, using an RJ45 modular plug to terminate shielded 10G LAN cables such as Cat7a, Cat7 and Cat6a were time-consuming, frustrating, and if you ever put a Fluke test on longer distance links or channels, the results were not exactly stellar. Of course, you could use an industrial-style RJ45 Field Plug connector, but those are expensive and still require more effort than they should. TheSimply45®engineering team did extensive testing and development to design a high-performing Standard WE/SS (8P8C) RJ45 modular plug solution that was both easy to use and cost-effective.

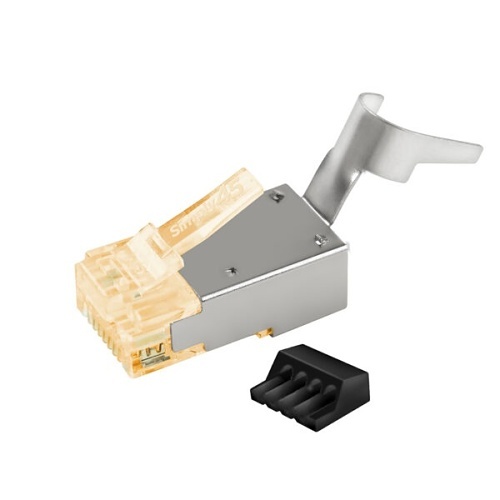

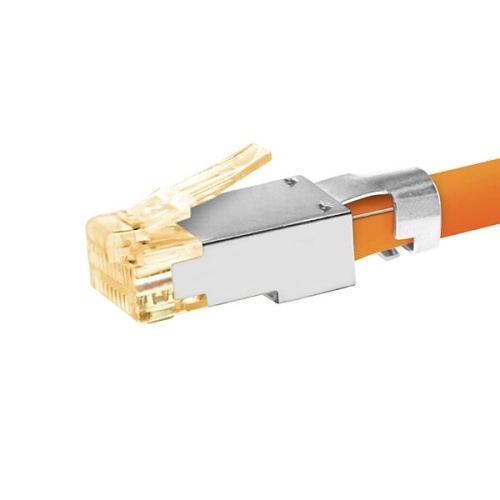

Introducing ourS45-1155Standard WE/SS Shielded with External Ground RJ45 Modular Plugs for 10G LAN cables with FPE insulated wires. FPE (foam polyethylene) insulated wires are found on most of today’s 10G Shielded LAN such as Cat7a, Cat7, Cat6a with S/FTP, U/FTP, and F/FTP LAN cable constructions. TheS45-1155are IEEE 802.3 10GBase-T compliant
Main Features

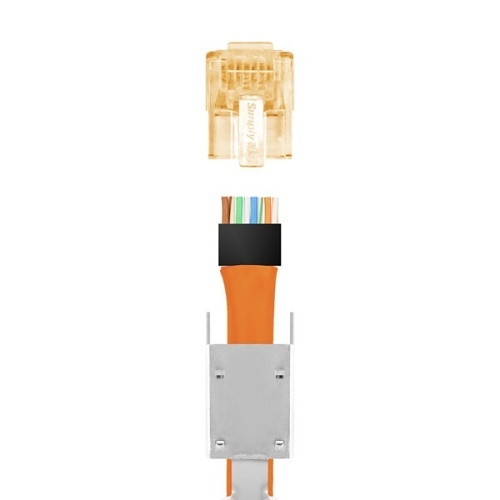

- Trim the wire, then simply slide Bar45 back to the LAN cable jacket.
General Information
Specifications
-
ADI Part Number G0-S451155 Brand Name Simply45 Manufacturer Part Number S45-1155 Packaged Quantity 50 Product Line Simply45 Product Type Network Connector Â
-
Contact Plating Gold Network Category Type CAT6A, CAT7 Shielding Yes Â
-
Connector Type RJ45 Network Male Number of Contacts 8 Â
-
Color Orange Â
-
Environmentally Friendly Yes Features 3 Prong Contact, 50µ Gold, Color Tinted, Crosstalk Protection, Far End Cross Talk (FEXT), Fire Resistant, Fire Retardant, Flame Retardant, Near End Cross Talk (NEXT), Plenum, PoE, PoE+, PoE++, Polycarbonate, Shielded, Solid, Stranded TAA Compliant Yes Â
