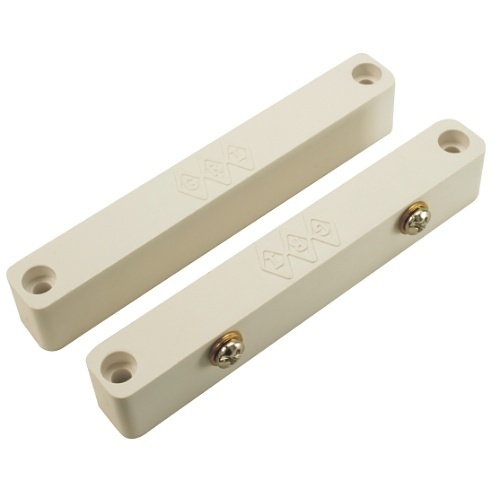

GRI 412-W Industrial Surface Mount Switch Set, 1-1/2" Standard Gap, SPDT, White
412-W
|GI-412W
Shop all George Risk Industries
GRI 412-W Industrial Surface Mount Switch Set, 1-1/2" Standard Gap, SPDT, White
412-W | GI-412W
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The GRI series of commercial and industrial switch sets offer the installer two choices.The 400 incorporates hidden terminals, inset into the recessed back to provide tamper resistant installations. The 410 has the standard terminals located on the side of the switch. Both options give the installer a regular gap of 1.25" while the wide gap version is 3", which cover the various types of steel door and frame conditions found at every commercial and industrial site. Spacers and mounting hardware are included with the set. The 410P version offers two feet of vinyl jacketed cable. A mounting bracket kit, PN 82-99-G is also available. The kit includes a S412P-G with M-402, S-200 and 4175 brackets and mounting hardware.
Main Features
- Surface mount magnetic contact
- 400 has concealed terminals
- 410 has standard terminals on side of contact
- 410P has 36" 2 conductor vinyl jacketed cable
- Covers and mounting hardware included
- Built in E.O.L. Resistors and Diodes upon request
- Colors white, brown and gray
- Private labeling upon request
- Indicates U.L. 10C Fire Rating
General Information
Name: GRI 412-W Industrial Surface Mount Switch Set, 1-1/2" Standard Gap, SPDT, White
Category: George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code: 697625038817
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number GI-412W Brand Name George Risk Industries Manufacturer Part Number 412-W
Color White
Contact Type SPDT
Limited Warranty Lifetime Warranty
Features 400 has concealed terminals, 410 has standard terminals on side of contact, 410P has 36" 2 conductor vinyl jacketed cable, Built in E.O.L. Resistors and Diodes upon request, Colors- white, brown and gray, Covers and mounting hardware included, Indicates U.L. 10C fire rating, Private labeling upon request, Surface mount magnetic contact
