Gentex GSSR Speaker / Strobe with Selectable Candela LED Strobe and Universal Mount, 25 / 70.7 VRMS, FIRE Text, Red Faceplate
GSSR
|GN-GSSR
Shop All GENTEX
Gentex GSSR Speaker / Strobe with Selectable Candela LED Strobe and Universal Mount, 25 / 70.7 VRMS, FIRE Text, Red Faceplate
GSSR | GN-GSSR
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

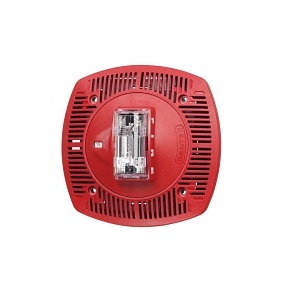

The GSSR is a universal mount speaker (SSPKCLP) and ceiling mount speaker/strobe (SSPK24CLP) designed to meet code requirements for audio, visual and voice communications. The SSPK24CLP speaker/strobes offers field selectable candela options of 15, 30, 75, 95 and 115. Listed to ANSI/UL 1480, ANSI/UL 1971 and ANSI/UL 2043, CAN/ULC listed, applicable IBC/IFC/IRC Standards and NFPA 72.
Main Features
- GSSR speaker is universal mount for ceiling or wall applications
- Strobe nominal voltage 24VDC
- Frequency Range 400-4000Hz
- Speaker voltage 25 or 70.7 VRMs standard, field selectable
- Field selectable power taps: 1/8W, 1/4W, 1/2W, 1W, 2W, 4W
- Screw terminals, separate in/out wiring (12-18 gauge)
- Synchronize strobe using Gentex AVSM control module
- High decibel output
- Candela selections are tamper proof
- Strobe maintains constant 1Hz flash rate regardless of input voltage
General Information
Name: Gentex GSSR Speaker / Strobe with Selectable Candela LED Strobe and Universal Mount, 25 / 70.7 VRMS, FIRE Text, Red Faceplate
Category: GENTEX, Fire, Fire Notification Devices, Speakers
UPC Code: 700217048436
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number GN-GSSR Brand Name Gentex Manufacturer Part Number GSSR
ADI Part Number Replaces GN-9041441 Model Number Replaces SSPK24CLPR
