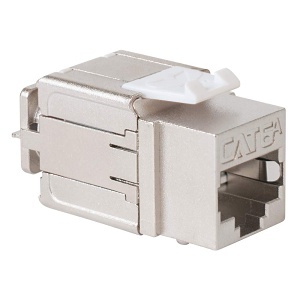

ICC IC1078S6A0 Shielded FTP CAT6A Keystone Jack with Slim Profile 180 Degree Punch Down, 10Gbps RJ45 UL Listed PoE++ TAA Compliant for Wall Plate or Patch Panel, Works with JackEasy Termination Tool
IC1078S6A0
|H2-1078S6A0
Shop all ICC
ICC IC1078S6A0 Shielded FTP CAT6A Keystone Jack with Slim Profile 180 Degree Punch Down, 10Gbps RJ45 UL Listed PoE++ TAA Compliant for Wall Plate or Patch Panel, Works with JackEasy Termination Tool
IC1078S6A0 | H2-1078S6A0
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
CAT6A high-density (HD), FTP shielded modular jacks (8P8C) is designed to deliver advanced performance for 10G applications and backward compatibles with CAT6 and CAT5e systems. CAT6A high-density (HD) FTP die-cast connector and wire cap shields and protects vital network terminations from harmful Electromagnetic Interference (EMI) commonly present around power cables, heavy machinery and external noises that causes alien crosstalk along the path of a signal. CAT6A FTP shielded modular jacks (8P8C) innovative high-density (HD), split pairs termination allows the jack to be terminated with traditional single blade punch down tool or ICC’s 4-pair JackEasy termination tool.FeaturesCAT6A shielded connectors provide excellent performance for data networks.Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals.Engineered to provide wire termination cap for a quick and easy termination.Shielded housing provides against electromagnetic interference (EMI).Compatible with TIA-568A/B wiring diagram.Ideal for a 22-24AWG solid wire.Compatible with CAT6A FTP blank patch panel, faceplates, surface mount boxes.High-density style jacks are compatible with Decorex style inserts, classic faceplates.Used with110 single-blade punch down tool and JackEasy tool.Exceeds ANSI/TIA-568-C requirements for permanent performancesUL 1863 compliant.
Main Features
- Shielded FTP Connector & PoE++ Rated: This CAT6A keystone jack features an FTP die-cast connector and wire cap, shielding terminations from harmful EMI near power cables and machinery. With 50 micro-inch gold-plated contacts over 100 micro-inches of nickel, it supports up to 100 watts of PoE++ for high-power devices like PTZ cameras and networked equipment, ensuring reliable 8P8C configurations for high-power applications
- Fast 4-Pair Termination: Built to work with ICC’s JackEasy 4-Pair Termination Tool (SKU ICACSPDTEH), enabling termination of all four pairs in a single squeeze. Features phosphor bronze alloy IDC pins, designed to withstand 100+ re-terminations for reliable and durable performance. Supports over 750 plug-to-jack insertion cycles for extended usability, with compatibility for RJ45 (8P8C) patch cables
- TAA Compliant & Section 889 Certified: ICC CAT6A keystone jacks meet U.S. government regulations, including TAA and Section 889. Manufactured in approved countries, UL Listed, RoHS and UL 1863 compliant for safety. ETL Verified to TIA 568.2-D (U.S.) and IEEE 802.3 standards, supporting 10-Gigabit Ethernet (10GBASE-T) and backward compatibility with Fast Ethernet (100BASE-TX) and Gigabit Ethernet (1000BASE-T)
- Max. Space Efficiency: The slim body of the jack maximizes space utilization in modular patch panels and work area outlets for high density applications, allowing for greater connectivity and more port configurations within the same space. Includes TIA-568A/B color-coded wiring diagrams conveniently displayed on the IDC for quick reference. Compatible with 8-position, 8-conductor configurations, ensuring versatility for a wide range of network installations
- Complete Cabling System: Install ICC CAT6A Keystone Jacks with ICC CAT6A Cables, CAT6A Patch Panels, and CAT6A Patch Cables to achieve both Permanent Link and Channel Link specifications for end-to-end network performance. This configuration provides maximum NEXT headroom, exceeding ANSI/TIA-568 Category 6A requirements for enhanced crosstalk cancellation, reduced return loss, and improved network reliability. Backward compatible with Cat6, Cat5e and Cat5 components and cabling
General Information
Name: ICC IC1078S6A0 Shielded FTP CAT6A Keystone Jack with Slim Profile 180 Degree Punch Down, 10Gbps RJ45 UL Listed PoE++ TAA Compliant for Wall Plate or Patch Panel, Works with JackEasy Termination Tool
Category: ICC, Data Comm & Networking, Cable Connectors, Inserts & Adapters
UPC Code: 633758029315
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
ADI Part Number H2-1078S6A0 Brand Name ICC Connector Gender Female Manufacturer ICC Manufacturer Part Number IC1078S6A0 Packaged Quantity 1 Product Model IC1078S6A0 Product Name Cat.6a Modular Connector Product Type Network Connector
Cable Type Category 6a Contact Plating Gold, Nickel Shielding Yes
TAA Compliant Yes
Connector Type RJ45
Height 0.64" Weight 1.10lb Width 0.57"
Length 1.46" Mount Type Surface Mount
Limited Warranty 3-Year
Compatibility ICCBlank Patch Panel IC107PPS6AFace PlatesSurface Mount Boxes Country of Origin TW Environmental Certification RoHS Environmentally Friendly Yes Features Alien Cross Talk (AXT), Crosstalk Protection, EMI Protection, Far End Cross Talk (FEXT), Near End Cross Talk (NEXT), PoE++ Indoor/Outdoor Indoor Package Contents - Cat.6a Modular Connector
- Wire Termination Cap
- Cable Tie
