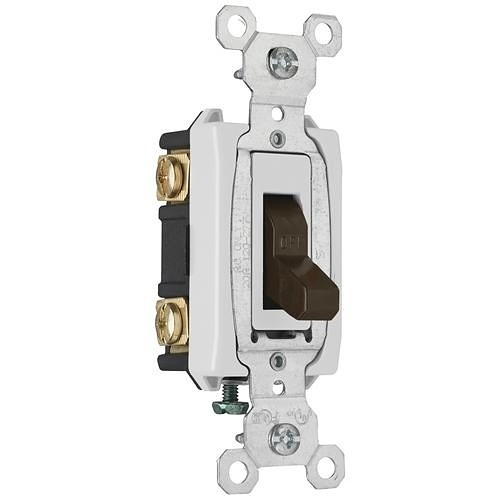

Pass & Seymour CSB20AC2 20A 120/277VAC Back and Side Wire Commercial Double Pole Switch, Brown
CSB20AC2|H4-CSB20AC2
Pass & Seymour CSB20AC2 20A 120/277VAC Back and Side Wire Commercial Double Pole Switch, Brown
CSB20AC2|H4-CSB20AC2
Key Features
- One-piece brass alloy contact arm for reliable electrical performance
- One-piece steel strap with integral ground is plated for corrosion resistance
- High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse
Key Features
- One-piece brass alloy contact arm for reliable electrical performance
- One-piece steel strap with integral ground is plated for corrosion resistance
- High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- One-piece brass alloy contact arm for reliable electrical performance
- One-piece steel strap with integral ground is plated for corrosion resistance
- High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse

Pass & Seymour by Legrand
Pass & Seymour CSB20AC2 20A 120/277VAC Back and Side Wire Commercial Double Pole Switch, Brown
CSB20AC2 | H4-CSB20AC2
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Construction 2-pole switch, back and side-wire, 20A 120/277V.
Main Features
- One-piece brass alloy contact arm for reliable electrical performance
- One-piece steel strap with integral ground is plated for corrosion resistance
- High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse
- Heavy-duty toggle bumpers for smooth and quiet operation
- Back body made of glass-reinforced nylon
- Available with side wire or external screw-pressure-plate back and side wire models capable of accepting 14 - 10AWG copper or copper-clad wire
- Cam designed for fast make with positive break action to minimize arcing and prolong switch life
- Oversized silver alloy contacts for longer dependable switch life
- Tri-drive terminal and mounting screws
- Locking support provides resistance to face and back body separation
General Information
Name: Pass & Seymour CSB20AC2 20A 120/277VAC Back and Side Wire Commercial Double Pole Switch, Brown
Category: Pass & Seymour by Legrand, Smart Home, Smart Dimmers & Light Switches
UPC Code: 785007126150
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number H4-CSB20AC2 Brand Name Pass & Seymour by Legrand Manufacturer Part Number CSB20AC2 Product Name Hard Use Specification Grade Switch, Brown Product Type Switch
-
Application/Usage Commercial Color Brown Depth 1.073" Height 3.28" Width 1.32"
-
Current Rating 20A Input Voltage 120-277V AC
-
Certifications & Standards FEDSPEC, UL 498/20 Country of Origin MX Environmental Certification FEDSPEC, UL 498/20
