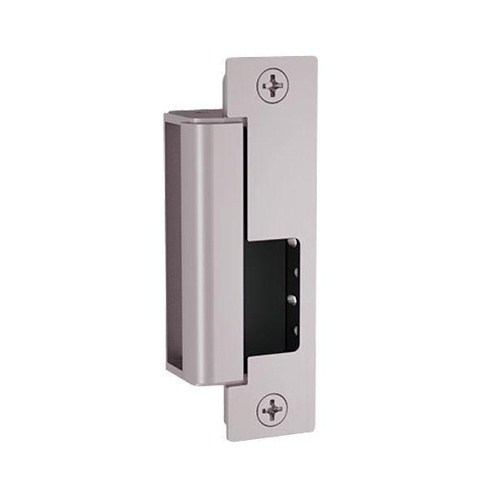

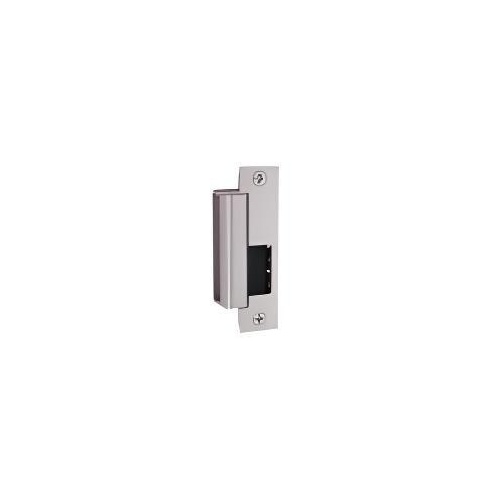

HES 1500-630-DLM 1500 Series Universal Electric Strike, Dual Lock Monitor , Satin Stainless Steel
1500-630-DLM|HE-15B0DL
HES 1500-630-DLM 1500 Series Universal Electric Strike, Dual Lock Monitor , Satin Stainless Steel
1500-630-DLM|HE-15B0DL
Key Features
- Stainless steel construction
- Tamper resistant
- Static strength 1500 lbs
Key Features
- Stainless steel construction
- Tamper resistant
- Static strength 1500 lbs
Key Features
- Stainless steel construction
- Tamper resistant
- Static strength 1500 lbs

HES by ASSA ABLOY
HES 1500-630-DLM 1500 Series Universal Electric Strike, Dual Lock Monitor , Satin Stainless Steel
1500-630-DLM | HE-15B0DL
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The HES 1500 Series™ electric strike is more than a new heavy duty, low profile solution for latchbolt locks. It accommodates every brand of cylindrical or mortise lock designed to work with a 4-7/8" strike plate.
Elegant Form & Function
- Adjustable integrated shim for changing door conditions
- Field upgradeable options
- Integrated monitoring of latchbolt and/or door position switch
Designed with the Installer in Mind
- Accommodates all brands of mortise and cylindrical locks
- Dual voltage 12/24VDC
- Field selectable fail safe/fail secure
Convenient & Versatile
- Interchangeable accessories work with both models
- Field serviceable components
- All faceplates are interchangeable between the 1500 and 1600
Main Features
- Stainless steel construction
- Tamper resistant
- Static strength 1500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1,000,000 cycles
- Field selectable fail safe/fail secure
- Non-handed
- Interchangeable faceplates and accessories
- Field replaceable components
- Fully finished faceplate, keeper, case and trim
General Information
Name: HES 1500-630-DLM 1500 Series Universal Electric Strike, Dual Lock Monitor , Satin Stainless Steel
Category: HES by ASSA ABLOY, Access Control, Locking Devices, Electric Strikes
UPC Code: 740090017174
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number HE-15B0DL Brand Name HES by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number 1500-630-DLM Product Name 1500 Electric Strike Product Series 1500 Product Type Electric Strike
-
Compatible Door Frame Type Metal, Wood Compatible Door Lock Type Cylindrical, Mortise Door Handling Non Handed Holding Strength 70 lb Security Configuration Fail Safe, Fail Secure
-
Application/Usage Door, Fire Door, Outdoor Color Silver Depth 1.375" Height 4.87" Material Stainless Steel Width 1.75"
-
Input Current 120mA, 240mA Input Voltage 12V DC, 24V DC Power Source AC
-
Finishing Satin Length 0.5"
-
Limited Warranty 5-Year
-
Certifications & Standards UL Listed Country of Origin US Features Field Adjustable Integrated Shim Indoor/Outdoor Outdoor
