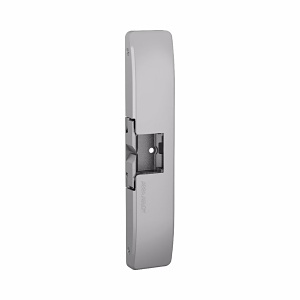

HES 9600-613E-LBSM 9600 Series Surface Mounted Electric Strike, Dark Oxidized Satin Bronze-Equivalent
9600-613E-LBSM
|HE-96613EBSM
Shop All HES by ASSA ABLOY
HES 9600-613E-LBSM 9600 Series Surface Mounted Electric Strike, Dark Oxidized Satin Bronze-Equivalent
9600-613E-LBSM | HE-96613EBSM
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The 9600 Series Electric Strike is a windstorm resistant, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw Pullman latchbolt. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover. It is field selectable for fail secure or fail safe operation, and for 12 or 24 VDC.
The 9600 is a surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.
Main Features
- Installs in metal or wood frames (wood screws not included)
- Separate base and decorative cover for easy adjustments
- Stainless steel construction
- Tamper resistant
- Static strength 2,000 lbs
- Dynamic strength 120 ft-lbs
- Endurance 1,000,000 cycles
- Field selectable fail safe/fail secure
- Horizontal adjustability
- Non-handed
General Information
Name: HES 9600-613E-LBSM 9600 Series Surface Mounted Electric Strike, Dark Oxidized Satin Bronze-Equivalent
Category: HES by ASSA ABLOY, Access Control, Locking Devices, Electric Strikes
UPC Code: 740090015910
Country of Origin: United States.Country of origin is subject to change.
Specifications
ADI Part Number HE-96613EBSM Brand Name HES by ASSA ABLOY Manufacturer Part Number 9600-613E-LBSM Product Name HES 9600-613E-Lbsm Electric Strike With Latchbolt Strike Monitor In Dark Oxidized Satin Bronze Finish Product Series 9600 Product Type Electric Strike
Compatible Door Lock Type Rim Exit Holding Strength 120 lb Material Stainless Steel Security Configuration Fail Safe, Fail Secure
Depth 0.75" Height 9" Width 1.75"
Input Voltage 12V DC, 24V DC Power Source AC
Finishing Dark Oxidized Satin Bronze
Country of Origin US Features Horizontal Adjustment, Internally Mounted Solenoid, Latchbolt Monitor, Surface Mount Indoor/Outdoor Outdoor
