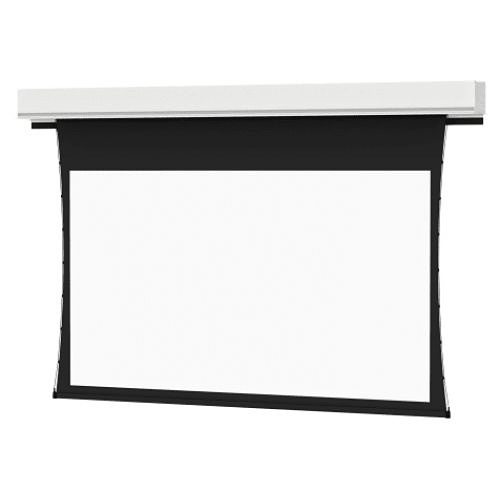

Da-Lite 24861F Tensioned Advantage Series Ceiling Recessed Electric Screen, 72.5"x116" with HD Progressive 1.3
24861F|HI-24861F
Da-Lite 24861F Tensioned Advantage Series Ceiling Recessed Electric Screen, 72.5"x116" with HD Progressive 1.3
24861F|HI-24861F
Key Features
- Standard Low Voltage Control (LVC) and available optional controls allows screen operation flexiblity
- UL Plenum rated case
- White powder-coated case for a clean aesthetic
Key Features
- Standard Low Voltage Control (LVC) and available optional controls allows screen operation flexiblity
- UL Plenum rated case
- White powder-coated case for a clean aesthetic
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Standard Low Voltage Control (LVC) and available optional controls allows screen operation flexiblity
- UL Plenum rated case
- White powder-coated case for a clean aesthetic
Da-Lite by Legrand
Da-Lite 24861F Tensioned Advantage Series Ceiling Recessed Electric Screen, 72.5"x116" with HD Progressive 1.3
24861F | HI-24861F
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

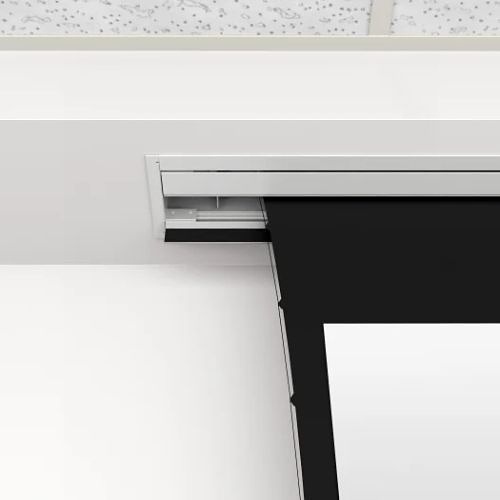

The Tensioned Advantage ceiling recessed electric screen series is designed with ceiling trim in place, to conceal the rough opening eliminating the need to complete additional trim work once the screen is installed. Its two-stage installation option affords the screen case to be installed during the rough-in construction stage, and the screen surface assembly during the finishing stage. Sliding installation brackets allow mounting flexibility for easy attachment of the screen housing to the structure above the drop ceiling.
Main Features
- Standard Low Voltage Control (LVC) and available optional controls allows screen operation flexiblity
- UL Plenum rated case
- White powder-coated case for a clean aesthetic
- Decora-style, three-button wall switch
- All sizes standard with 12" of black drop except for Parallax Pure which is standard with 2"
- Smooth Roll Technology to keep your screen perfectly flat
- TruGuide Electric Screen Tensioning System provides optimal viewing surface smoothness
- Standard black backing retains projected brightness on front projection surfaces
- Seamless surfaces in all models
General Information
Name: Da-Lite 24861F Tensioned Advantage Series Ceiling Recessed Electric Screen, 72.5"x116" with HD Progressive 1.3
Category: Da-Lite by Legrand, Pro AV, Pro Projectors & Accessories, Pro Projector Screens
UPC Code: 717068372689
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number HI-24861F Brand Name Da-Lite by Legrand Manufacturer Part Number 24861F Product Name Da-Lite-ADV DLX TNSD 137D HD1.3 Product Series Tensioned Advantage Product Type Projection Screen Weight 50lb
-
Diagonal Image Size 137" Screen Height 72.5" Screen Width 116"
-
Aspect Ratio 0.67361111111111116
