Hikvision DS-K2M061(O-STD) Secure Door Control Module, RS-485, 4-Channel
DS-K2M061(O-STD)|HX-K2M061
Hikvision DS-K2M061(O-STD) Secure Door Control Module, RS-485, 4-Channel
DS-K2M061(O-STD)|HX-K2M061
Key Features
- Co mmunicates with the access control terminal via RS-485 to execute the co mmands from the terminal including open door, close door, normally open and normally closed
- Collects the door magnetic signal, the exit button signal and the tamper-proof signal and send them to the access control terminal
- Supports tampering alarm
Key Features
- Co mmunicates with the access control terminal via RS-485 to execute the co mmands from the terminal including open door, close door, normally open and normally closed
- Collects the door magnetic signal, the exit button signal and the tamper-proof signal and send them to the access control terminal
- Supports tampering alarm
.jpg)
Key Features
- Co mmunicates with the access control terminal via RS-485 to execute the co mmands from the terminal including open door, close door, normally open and normally closed
- Collects the door magnetic signal, the exit button signal and the tamper-proof signal and send them to the access control terminal
- Supports tampering alarm
Hikvision
Hikvision DS-K2M061(O-STD) Secure Door Control Module, RS-485, 4-Channel
DS-K2M061(O-STD) | HX-K2M061
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

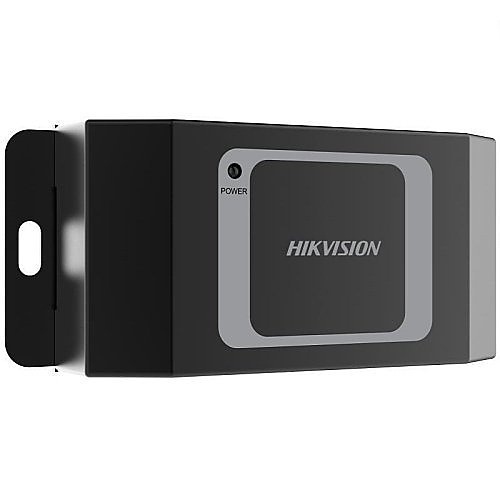

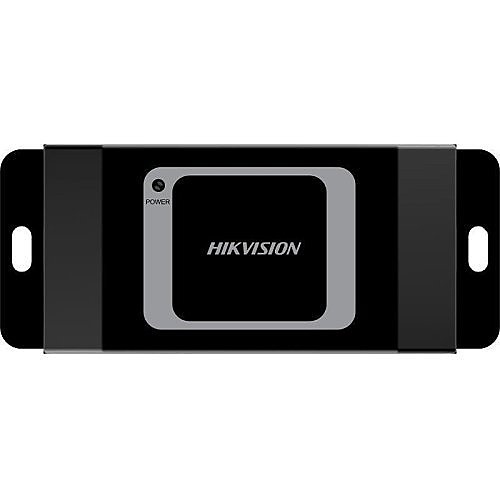

DS-K2M061 Secure Door Control Unit is the interlayer between the access control terminal and the lock, including the door magnetic, the lock, the exit button and so on. It can be applied to keep the door closed when the door is damaged.
Main Features
- Co mmunicates with the access control terminal via RS-485 to execute the co mmands from the terminal including open door, close door, normally open and normally closed
- Collects the door magnetic signal, the exit button signal and the tamper-proof signal and send them to the access control terminal
- Supports tampering alarm
- Supports RS-485 communication indicators to show the communication status
- 4-Channel DIP switch supporting ID No. configuration
- Supports a Wiegand interface to connect a Wiegand card reader to enter/exist access control terminal by swiping card
- Fire interface and exit button linkage
General Information
Name: Hikvision DS-K2M061(O-STD) Secure Door Control Module, RS-485, 4-Channel
Category: Hikvision, Access Control, Access Control Panels & Accessories, Control Panel Modules
UPC Code: 842571111439
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number HX-K2M061 Brand Name Hikvision Manufacturer Part Number DS-K2M061(O-STD) Product Type Control Module
-
TAA Compliant No
-
Country of Origin CN
