Product Overview
Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses and high performance sensors. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light.
General Information

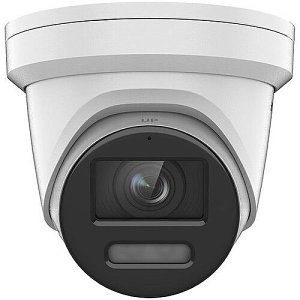

Name : Hikvision DS-2CD2387G2-LU Performance Series ColorVu 8MP Outdoor WDR Turret IP Camera with Built-In Microphone, 2.8mm Fixed Lens, White , Hikvision
Category : Turret Cameras
UPC Code : 842571139730
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : HX-TR2387G22
Brand Name : Hikvision
Connectivity Technology : Wired
Manufacturer : Hikvision
Manufacturer Part Number : DS-2CD2387G2-LU 2.8MM
Product Line : ColorVu
Product Model : DS-2CD2387G2-LU
Product Name : 8 MP ColorVu Fixed Turret Network Camera
Product Series : Pro
Product Type : Network Camera
Weight (Approximate) (g) : 870
Technical Information
Effective Camera Resolution : 8MP
Field of View : horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°
HD Recording : Yes
Lens Mount Type : M16
Lens Type : Fixed
Maximum Aperture : f/1
Maximum Focal Length (mm) : 2.8
Maximum Frame Rate : 30 fps
Night Vision : Yes
Night Vision Type : Color
Video Formats : H.264, H.265, MJPEG
Camera
Image Sensor Type : CMOS
Night Vision Distance : 98.43 ft
Night Vision Distance (mm) : 30000
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color
Effective Camera Resolution (Pixel) : 8000000
Maximum Video Resolution : 3840 x 2160
Minimum Illumination (lux) : 0.0005
Environmental Conditions
Maximum Operating Temperature : 140°F (60°C)
Maximum Operating Temperature (°F) : 140
Minimum Operating Temperature : -22°F (-30°C)
Minimum Operating Temperature (°F) : -22
Operating Humidity : 95%
Exposure
Longest Shutter Speed : 1/3 Second
Minimum Illumination : 0 lux
Shortest Shutter Speed : 1/100000 Second
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 2.8 mm
Lens Included : Yes
Maximum Focal Length : 2.8 mm
Network & Communication
Remote Management : Yes
Physical Characteristics
Color : White
Diameter (mm) : 138.3
Durability : Dust Resistant, Water Resistant
Form Factor : Turret
Height : 4.7"
Height (mm) : 120.1
Weight (Approximate) : 1.92 lb
Width : 4"
Width (mm) : 100.5
Power Description
Input Voltage : 12 V DC
Input Voltage (V DC) : 12
Product Information
Diameter : 5.4"
Mount Type : Corner Mount, Junction Box Mount, Pendant Mount, Pole Mount, Vertical Mount, Wall Mount
Storage
Recording Formats : 4K
Storage Type : Memory Card
Video
Maximum Frame Rate (fps) : 30
Miscellaneous
Country of Origin : China
Environmental Certification : REACH, RoHS, WEEE
Environmentally Friendly : Yes
Features : 3D Digital Noise Reduction, Alarm Triggering, Audio Compression, Auto Gain Control, Back Light Compensation (BLC), Built-in Microphone, Cross Line Detection, Day/Night, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Region of Interest, SD Card Local Storage, White Balance, Wide Dynamic Range
Indoor/Outdoor : Indoor, Outdoor
Ingress Protection Rating : IP67
