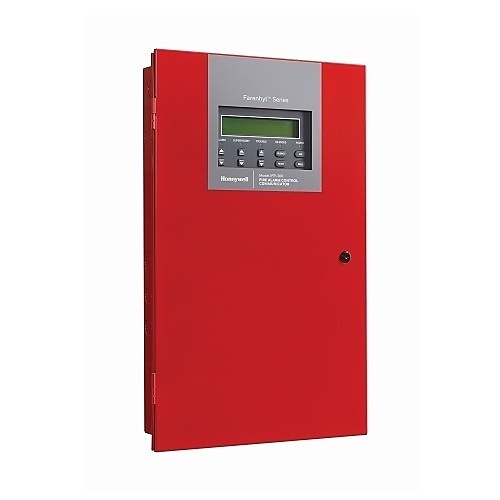

Farenhyt IFP-300 Addressable Fire Alarm Control Panel, Red Cabinet
IFP-300 | I2-IFP300
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The IFP-300 is an intelligent 300 point analog/addressable fire alarm control panels (FACP) and are direct replacements for the IFP-100 FACP. The IFP-300 panel contains one built-in signaling line circuit (SLC), which can support 159 (IDP/SK) System Sensor sensors and 159 IDP/SK modules or 127 (SD) Hochiki devices per loop. Additional SLC loops can be added using the model 6815 SLC expander for SK/IDP devices to increase the overall point capacity to a maximum of 300 points per panel, or model 5815XL for SD devices to increase the overall point capacity to a maximum of 254 points per panel.
Main Features
- Network support for up to 32 Sites
- Built-in support for up to 159 IDP/SK detectors and 159 IDP/SK modules or 127 SD SLC devices
- Four line LCD display with 40 characters per line
- Available in a red or black cabinet
- Can be surface or flush mounted
- Built-in USB interface for convenient and quick programming
- Firmware can be upgraded in the field
- Network card allows copper network connection with a multi-mode or single-mode fiber connection option
- Built-in dual phone line, digital alarm communicator/ transmitter (DACT) with IP and optional cellular technologies
- JumpStart auto programming feature for easy programming
General Information
Name: Farenhyt IFP-300 Addressable Fire Alarm Control Panel, Red Cabinet
Category: Honeywell Farenhyt Series, Fire, Fire Control Panels, Fire Alarm Control Panels
UPC Code: 783196014258
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number I2-IFP300 Brand Name Honeywell Farenhyt Series Manufacturer Part Number IFP-300 Product Type Fire Alarm Control Panel
-
Color Black, Red
-
Environmental Certification UL Environmentally Friendly Yes
