Image of I2-IFP300ECS
Shop all Honeywell Farenhyt Series

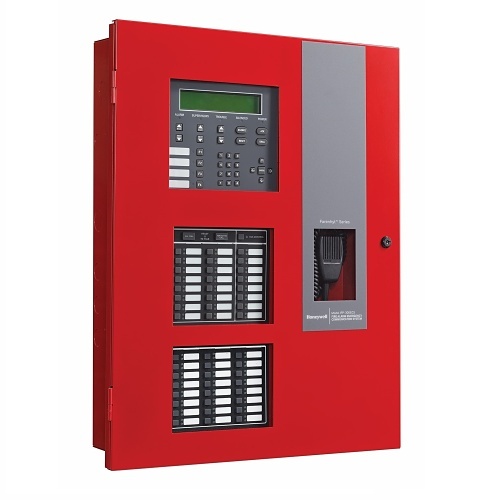

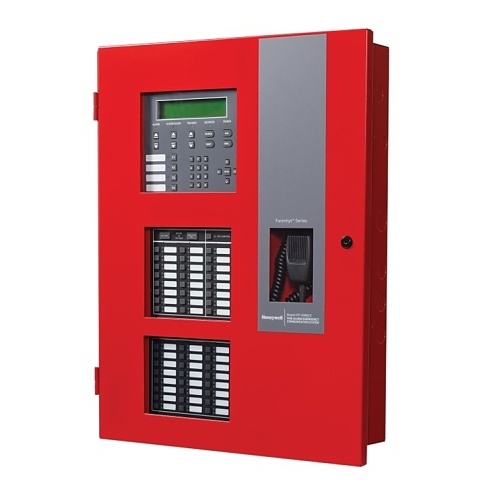

Farenhyt IFP-300ECS Farenhyt IFP-300ECS Emergency Communication System with FACP, Red

IFP-300ECS|I2-IFP300ECS
Shop all Honeywell Farenhyt Series

Farenhyt IFP-300ECS Farenhyt IFP-300ECS Emergency Communication System with FACP, Red

IFP-300ECS|I2-IFP300ECS
Key Features
  • Single enclosure for both Fire and Emergency Control system components
  • Can select ECS message as priority over fire
  • Network support for up to 32 Sites
Key Features
  • Single enclosure for both Fire and Emergency Control system components
  • Can select ECS message as priority over fire
  • Network support for up to 32 Sites

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Single enclosure for both Fire and Emergency Control system components
  • Can select ECS message as priority over fire
  • Network support for up to 32 Sites
Honeywell Farenhyt Series

Farenhyt IFP-300ECS Farenhyt IFP-300ECS Emergency Communication System with FACP, Red

IFP-300ECS | I2-IFP300ECS

Please sign in to view pricing and availability and to add to cart.

Accessories

Batteries
Ultratech UT12120 General Purpose Battery
ADI # IM-12120
MODEL # IM-12120
UltraTech
UltraTech IM-12120 12V 12AH Sealed Lead Acid Battery, F2 Terminal
IM-12120|IM-12120
Sign In for Dealer Pricing
Batteries
Ultratech IM Battery
ADI # IM-1272F1
MODEL # IM-1272F1
UltraTech
UltraTech IM-1272F1 12V 7AH Sealed Lead Acid Battery, F1 Terminal (Replaces IM-1270)
IM-1272F1|IM-1272F1
Sign In for Dealer Pricing
Aerosol Detector Testers
W Box 0E-SMOKETEST Aerosol Smoke Detector Tester
ADI # 0E-SMOKETEST
MODEL # 0E-SMOKETEST
ADI PRO
ADI PRO 0E-SMOKETEST Aerosol Smoke Detector Tester
0E-SMOKETEST|0E-SMOKETEST
Sign In for Dealer Pricing
Smoke & CO Detectors
Image of 0E-SMKCODTCR
ADI # 0E-SMKCODTCR
MODEL # 0E-SMKCODTCR
ADI PRO
ADI PRO 0E-SMKCODTCR AC Photoelectric and Electrochemical Smoke and CO Combo Detector
0E-SMKCODTCR|0E-SMKCODTCR
Sign In for Dealer Pricing
Smoke Detectors
Image of 0E-SMKDTCR
ADI # 0E-SMKDTCR
MODEL # 0E-SMKDTCR
ADI PRO
ADI PRO 0E-SMKDTCR AC Photoelectric Smoke Detector with 9V Battery Backup
0E-SMKDTCR|0E-SMKDTCR
Sign In for Dealer Pricing
Overview
Specifications
Documents

Product Overview

The IFP-300ECS (red) and IFP-300ECSB (black) are Intelligent analog/addressable fire alarm control panels (FACP) combined with an Emergency Communication System (ECS) and are direct replacements for the IFP-100ECS FACP. When the ECS features are enabled, they are integrated with the fire alarm and voice evacuation functions of the control panel. The IFP-300ECS panel and accessories provide features to meet the requirements for Mass Notification Systems as described in UL 2572. This state of the art fire alarm control panel allows you to choose one of three SLC protocols per system. The IFP-300ECS panel contains one builtin signaling line circuit (SLC), which can support 159 System Sensor IDP/SK sensors and 159 IDP/SK modules or 127 (SD) Hochiki devices per loop. Additional SLC loops can be added using the model 6815 SLC expander for IDP/SK devices to increase the overall point capacity to a maximum of 300 points per panel, or model 5815XL SLC Expander for SD devices to increase the overall point capacity to a maximum of 254 points per panel.

Main Features

  • Single enclosure for both Fire and Emergency Control system components
  • Can select ECS message as priority over fire
  • Network support for up to 32 Sites
  • Separate network support for voice paging
  • Built-in USB interface for programming
  • Four programmable function keys
  • Built-in dual phone line, digital alarm communicator/ transmitter (DACT) IP / optional cellular technologies
  • JumpStart, Auto Programming feature for easy programming
  • Capable of producing 520 Hz tones to meet NFPA 72 requirements

General Information

Name: Farenhyt IFP-300ECS Farenhyt IFP-300ECS Emergency Communication System with FACP, Red
Category: Honeywell Farenhyt Series, Fire, Fire Control Panels, Fire Alarm Control Panels
UPC Code: 783196014272
Country of Origin: United States. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
