Product Overview

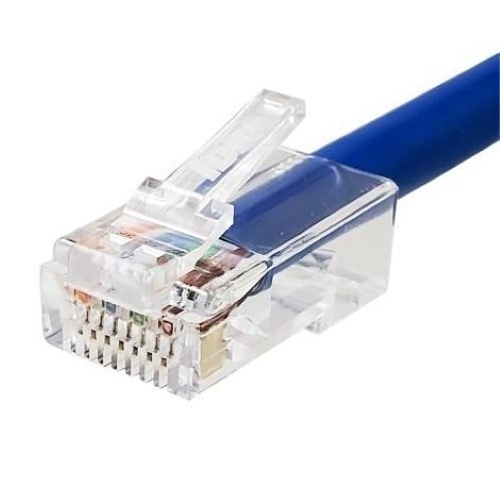

The IDEAL 85-362 CAT6 RJ45 8P8C Modular Plugs are designed for efficient network assembly and come in a convenient 25-pack. These modular plugs feature a single-piece design to simplify the assembly process and include 50 micron gold contacts arranged in 8 positions with 8 contacts. They support solid or stranded conductors sized 23-24AWG, enhancing versatility. While these plugs are not compatible with Crimpmaster RJ-45 Die Set, they are compatible with IDEAL 30-696, 30-496, and 33-396 Modular Plug Crimp Tools, ensuring suitable tool options for installation.
Main Features
- Single-piece design to simplify assembly
- 50 micron gold contacts, 8-position, 8-contact
- Suitable for solid or stranded conductors 23-24AWG
- Not compatible with Crimpmaster RJ-45 Die Set
- Compatible with IDEAL 30-696, 30-496 and 33-396 Modular Plug Crimp Tools
General Information
Name: IDEAL 85-362 CAT6 RJ45 8P8C Modular Plugs, 25-Pack
Category: IDEAL Industries, Data Comm & Networking, Cable Connectors, Network Cable Connectors
UPC Code: 783250853625
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
ADI Part Number IL-85362 Brand Name IDEAL Industries Manufacturer Part Number 85-362 Package Type Pack Packaged Quantity 50
Connector Plating Gold Impedance 100.00O
Connector Type RJ45 Number of RJ-45 Ports 2
Diameter 0.04"
Environmental Certification UL Environmentally Friendly Yes Features 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles, Complies with industry standard mechanical and electrical specifications for compatibility with compliant modular jacks and ports, Designed to work seamlessly with IDEAL FT-45 or Telemaster crimping tools, as well as industry standard modular plug crimping tool, For use with solid or stranded 23-24AWG insulated copper conductors up to 0.041" diameter, Max cable jacket outer diameter of .290", PoE and PoE++ compatible, RJ45 CAT6 connector, 8 position, 8 contact, for 100 ohms balanced twisted pair 250 MHz cables, Three prong contact design for use with solid or stranded 23-24AWG insulated copper conductors, UL Listed
