JBL Professional AC895-WH Application Engineered 2-way,150W,Wall Mount

Brand: JBL Professional
ADI #:JF-AC895WH Model #: AC895-WH  Name: JBL Professional AC895-WH Application Engineered 2-way,150W,Wall Mount
  • Compact enclosure
  • 209 mm (8 in) LF transducer
  • 90 deg x 50 deg Progressive Transition Field Rotatable Waveguide with a 25 mm (1 in) exit 25 mm (1") diaphragm compression driver

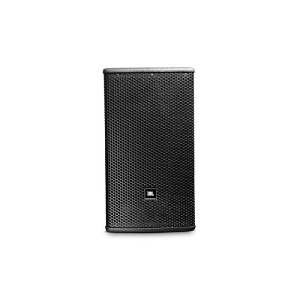

Image of JF-AC895WH

Product Overview

Applications:
  • Performing Spaces
  • Clubs & Bars
  • Houses of Worship
  • Multi Media Spaces
  • Retail & Hospitality Spaces
  • Presentation Suites
  • Educational Facilities
AC895 is a compact 2-way full-range loudspeaker system comprised of one 209 mm (8 in) low frequency driver and one 25 mm (1 in) exit/25 mm (1 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response.

The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount® or similar type mounting.

AC895 is part of JBL's AE Application Engineered Series, a versatil e family of loudspeakers for a wide variety of fixed installation applications.

General Information

Name : JBL Professional AC895-WH Application Engineered 2-way,150W,Wall Mount , JBL Professional
Category : Pro Speakers
UPC Code :
Country of Origin : China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : JF-AC895WH
Brand Name : JBL Professional
Manufacturer : Harman International Industries, Inc
Manufacturer Part Number : AC895-WH
Product Line : Application Engineered
Product Model : AC895
Product Name : AC895 2-Way Full-Range Loudspeaker with 1 x 8" LF
Product Series : AE
Product Type : Speaker
Weight (Approximate) (g) : 10200

Technical Information

Crossover Type : 2-way
Impedance : 8 ohms
Impedance (Ohm) : 8
Maximum Frequency Response (Hz) : 18000
Minimum Frequency Response (Hz) : 90
PMPO Output Power (W) : 600
Sensitivity : 94 dB
Sensitivity (dB) : 94
Tweeter Driver Size : 1"
Tweeter Driver Size (mm) : 25.4
Woofer Driver Size : 8"
Woofer Driver Size (mm) : 203.2

Audio

Maximum Frequency Response : 18 kHz
Minimum Frequency Response : 90 Hz
PMPO Output Power : 600 W
RMS Output Power : 150W
RMS Output Power (W) : 150

Physical Characteristics

Application/Usage : Bar, Club, Educational Facility, Hospitality, House of Worship, Multi Media Space, Performing Arts Center, Presentation Room, Retail
Color : White
Depth : 10"
Depth (mm) : 254
Form Factor : Wall Mount
Height : 18.5"
Height (mm) : 470
Weight (Approximate) : 22.49 lb
Width : 10.4"
Width (mm) : 265

Miscellaneous

Features : 209 mm (8 in) LF transducer, 90 deg x 50 deg Progressive Transition Field Rotatable Waveguide with a 25 mm (1 in) exit 25mm (1") diaphragm compression driver, Compact enclosure, Dual Neutrik NL4 connectors plus screw terminals, Multiple Attachment Points for Ultimate Flexibility
