JBL Professional IVX-587481 Speaker, INTELLIVOX-DSX280HDA TOP
IVX-587481|JF-IVX587481
JBL Professional IVX-587481 Speaker, INTELLIVOX-DSX280HDA TOP
IVX-587481|JF-IVX587481
Key Features
- Superb Speech Intelligibility
- Slim Unobtrusive Design
- Extended Frequency Response, up to 18kHz
Key Features
- Superb Speech Intelligibility
- Slim Unobtrusive Design
- Extended Frequency Response, up to 18kHz
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Superb Speech Intelligibility
- Slim Unobtrusive Design
- Extended Frequency Response, up to 18kHz

JBL Professional
JBL Professional IVX-587481 Speaker, INTELLIVOX-DSX280HDA TOP
IVX-587481 | JF-IVX587481
Please sign in to view pricing and availability and to add to cart.
Accessories
Pro Volume Controllers
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

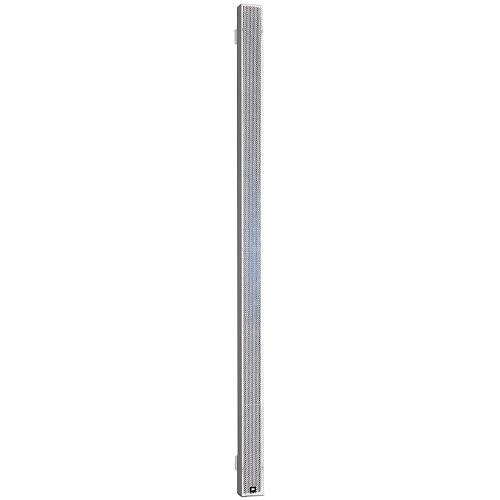

The Intellivox-DSX280 HD is capable of providing a constant sound pressure level over a distance of up to 35 m, although a substantial extension of this range can be achieved in less demanding acoustical conditions. The twelve, custom designed, 4" loudspeakers and four discretely controlled, 1" dome tweeters are driven by a sixteen channel class-D amplifier, powered by a sophisticated switched mode power supply, all of which combine to ensure years of reliable operation. The individually driven horn loaded dome tweeters in the DSX HD units provide unsurpassed high frequency vertical beam control while improving the horizontal coverage and enhancing the subjective sound quality of the system for both speech and music. An extensive set of surveillance functions have also been implemented to meet the stringent demands of typical Voice Alarm (life safety) applications. The unit can be controlled using our proprietary WinControl software which offers user friendly control of the beam steering parameters, audio processing, pre-sets and surveillance features. Its compact array length makes the Intellivox-DSX280 HD suitable for easy and unobtrusive implementation in even the most architecturally sensitive environment. The low frequency response of the system can be easily extended using a JBL sub woofer system.
Main Features
- Superb Speech Intelligibility
- Slim Unobtrusive Design
- Extended Frequency Response, up to 18kHz
- Wide Horizontal Dispersion
- Vertical Beam Shaping (DDS Technology)
- 32-bit floating point DSP
- Control of Vertical Beam Shaping
- Dual Line Inputs
- Volume Control
- Delay (up to 20 seconds)
General Information
Name: JBL Professional IVX-587481 Speaker, INTELLIVOX-DSX280HDA TOP
Category: JBL Professional, Pro AV, Commercial Audio, Pro Speakers
UPC Code: 999999539254
Country of Origin: Hungary. Country of origin is subject to change.
Specifications
-
ADI Part Number JF-IVX587481 Brand Name JBL Professional Manufacturer Harman International Industries, Inc Manufacturer Part Number IVX-587481 Product Line Intellivox Product Model IVX-587481 Product Name IVX-587481 Active Beam Shaping Self Powered Column Loudspeaker Array Product Series DSX Product Type Speaker Weight 55.1lb
-
Application/Usage Atriums, Conference Facilities, Lecture Halls and Theatres, Museums, Places of worship, Transport Hubs Color Black, White Depth 3.622" Height 110.24" Width 5.28"
-
Country of Origin HU Features 32-bit floating point DSP, Control of Vertical Beam Shaping, Delay (up to 20 seconds), Dual Line Inputs, Extended Frequency Response, up to 20kHz, Slim Unobtrusive Design, Superb Speech Intelligibility, Vertical Beam Shaping (DDS Technology), Volume Control, Wide Horizontal Dispersion
