JBL Professional JBL-LCT 81C/TM Low-Profile Lay-In 600mmx600mm Metric Ceiling Tile Loudspeaker with 200mm (8") Driver, Pair

JBL-LCT 81C/TM | JF-LCT81CTM

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

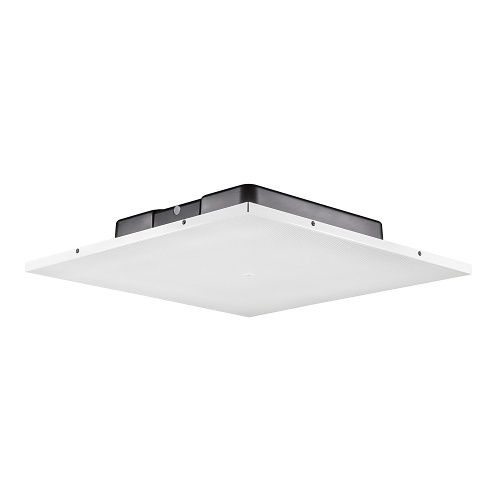

JBL-LCT 81C/TM is a full-range ceiling speaker designed to lay into a 600mmx600mm metric suspended grid ceiling, with no cutting of ceiling tiles required, making for an easy and cost-effective installation with a minimum of mess. The low profile depth of only 103mm (4.1") allows the speaker to fit in locations where deeper loudspeakers do not. This loudspeaker is designed to provide excellent performance for voice reinforcement and light-to-medium music in a wide variety of applications, including education classrooms, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, meeting rooms, and more. The very high sensitivity of 96 dB provides maximum sound level, even at low tap settings. JBL-LCT 81C/TM includes a 200mm (8") dual-cone driver with a very high 96 dB sensitivity. The driver features a 25mm (1") diameter voice coil with a Kapton coil-former and high-temperature wire for better power dissipation and long-term reliability. The speaker's built-in 10W transformer provides versatility by allowing use on 100V or 70V distributed loudspeaker lines, as well as at 8 ohms (low impedance) for driving directly from a low impedance power amplifier. Adjusting is convenient via a rotary switch on the side of the rear enclosure. Two safety seismic attachment tabs are provided for securing to ceiling deck, plus 4 holes are provided - one in each corner.

Main Features

High efficiency 200 mm (8") dual-cone driver
Perforated metal grille included
Combined 70V/100V and low impedance direct operation

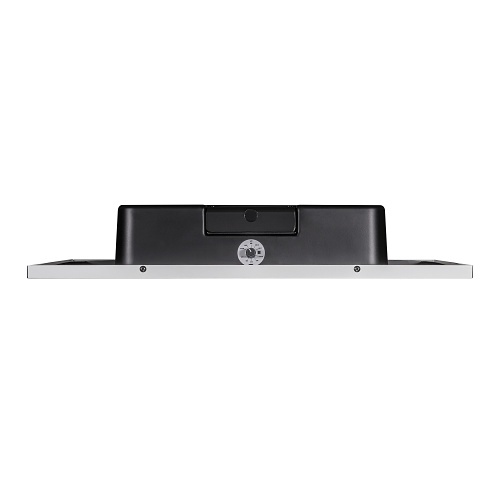

Very low-profile at just 103mm (4.1") deep, to fit into ceilings that are shallow or that contain obstructions
Easy bare-wire connection in protected compartment. Wire entrance from either top or side via knock-out
Very high 96 dB sensitivity turns power from small amplifiers into maximum sound level for listeners
Designed for high speech intelligibility
100° Coverage pattern (conical)

General Information

Name: JBL Professional JBL-LCT 81C/TM Low-Profile Lay-In 600mmx600mm Metric Ceiling Tile Loudspeaker with 200mm (8") Driver, Pair

Category: JBL Professional, Pro AV, Commercial Audio, Pro Speakers

UPC Code: 691991037351

Country of Origin: . Country of origin is subject to change.

Specifications

: ADI Part Number JF-LCT81CTM Brand Name JBL Professional Manufacturer Harman International Industries, Inc Manufacturer Part Number JBL-LCT 81C/TM Product Model JBL-LCT 81C/TM Product Name JBL-LCT 81C/TM Speaker Product Type Speaker

: Application/Usage Airport, Business, Classroom, Courtroom, Education, Fire Alarm, Lounge, Meeting, Music/Paging System, Reception, Retail Store, Signaling System, Waiting Room Impedance 8 ohms Sensitivity 96dB

: RMS Output Power 40W

: Sound Emission 96 dB

: Color White Depth 4.06" Form Factor Ceiling Mount Height 23.4" Weight 15.21lb Width 23.4"

: Mount Type Ceiling Mount
