JBL Professional PD6200/66-WH Speaker, Two-Way Mid-High Horn-Loaded Loudspeaker, White
PD6200/66|JF-PD620066W
JBL Professional PD6200/66-WH Speaker, Two-Way Mid-High Horn-Loaded Loudspeaker, White
PD6200/66|JF-PD620066W
Key Features
- High power 200 mm (8 in) dual-coil CMCD Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence
- Large format neodymium HF driver provides clear, intelligible high frequency projection
- Large PT Progressive Transition waveguides provide excellent pattern control, low distortion at high SPL levels and smooth frequency response
Key Features
- High power 200 mm (8 in) dual-coil CMCD Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence
- Large format neodymium HF driver provides clear, intelligible high frequency projection
- Large PT Progressive Transition waveguides provide excellent pattern control, low distortion at high SPL levels and smooth frequency response
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- High power 200 mm (8 in) dual-coil CMCD Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence
- Large format neodymium HF driver provides clear, intelligible high frequency projection
- Large PT Progressive Transition waveguides provide excellent pattern control, low distortion at high SPL levels and smooth frequency response
JBL Professional
JBL Professional PD6200/66-WH Speaker, Two-Way Mid-High Horn-Loaded Loudspeaker, White
PD6200/66 | JF-PD620066W
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Applications:
The CMCD-82H cone midrange compression driver consists of a driver/phasing plug assembly providing high output with low distortion. CMCD-82H's extended response allows for smoother transition to the high frequency driver and the smaller entrance diameter into the waveguide provides for better pattern control. The internal 200 mm (8 inch) driver features a high power Differential Drive® dual voice coil design. The 2432H large format high frequency compression driver utilizes a neodymium magnet and aluminum diaphragm to deliver clear and intelligible high frequency projection, extended frequency response, and low distortion at even the highest drive levels.

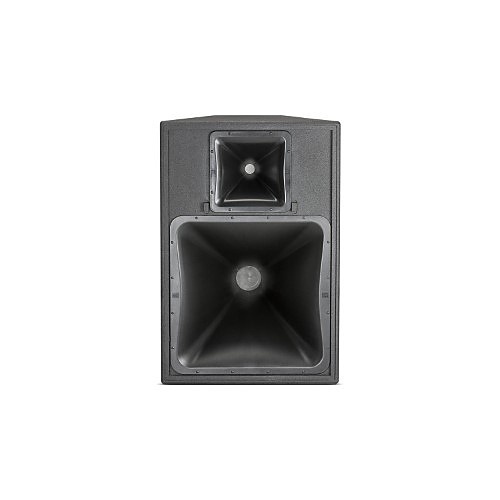

Large PT Progressive Transition waveguides achieve an optimum balance of extremely well controlled coverage with low distortion, smooth frequency response, and natural sound character. The waveguides are rotatable for cabinet positioning in either horizontal or vertical orientation. A high-slope crossover network minimizes band overlap and the resulting well-controlled off-axis response enhances arrayability.
The loudspeaker can be operated in either biamplified or in full passive mode. Input connectors include both Speakon® and CE-compliant covered barrier strip for hookup versatility. The cabinet is fitted with twenty M10 threaded suspension points, supporting a wide variety of installation approaches.
PD6200/66 is part of JBL's broad lineup of installed sound loudspeakers, complementing the larger PD700 mid-high cabinets with a more compact size and supplementing the smaller AE Series cabinets with higher SPL capability and larger horns for pattern control to a lower frequency.
- Performing arts facilities
- Live theaters
- Auditoriums
- Houses of worship
- Dance clubs
- Sports facilities
The CMCD-82H cone midrange compression driver consists of a driver/phasing plug assembly providing high output with low distortion. CMCD-82H's extended response allows for smoother transition to the high frequency driver and the smaller entrance diameter into the waveguide provides for better pattern control. The internal 200 mm (8 inch) driver features a high power Differential Drive® dual voice coil design. The 2432H large format high frequency compression driver utilizes a neodymium magnet and aluminum diaphragm to deliver clear and intelligible high frequency projection, extended frequency response, and low distortion at even the highest drive levels.
Large PT Progressive Transition waveguides achieve an optimum balance of extremely well controlled coverage with low distortion, smooth frequency response, and natural sound character. The waveguides are rotatable for cabinet positioning in either horizontal or vertical orientation. A high-slope crossover network minimizes band overlap and the resulting well-controlled off-axis response enhances arrayability.

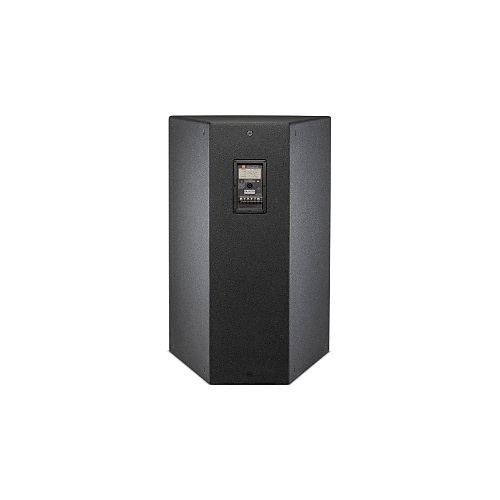

The loudspeaker can be operated in either biamplified or in full passive mode. Input connectors include both Speakon® and CE-compliant covered barrier strip for hookup versatility. The cabinet is fitted with twenty M10 threaded suspension points, supporting a wide variety of installation approaches.
PD6200/66 is part of JBL's broad lineup of installed sound loudspeakers, complementing the larger PD700 mid-high cabinets with a more compact size and supplementing the smaller AE Series cabinets with higher SPL capability and larger horns for pattern control to a lower frequency.
Main Features
- High power 200 mm (8 in) dual-coil CMCD Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence
- Large format neodymium HF driver provides clear, intelligible high frequency projection
- Large PT Progressive Transition waveguides provide excellent pattern control, low distortion at high SPL levels and smooth frequency response
- Rotatable waveguides allow either horizontal or vertical cabinet orientation
General Information
Name: JBL Professional PD6200/66-WH Speaker, Two-Way Mid-High Horn-Loaded Loudspeaker, White
Category: JBL Professional, Pro AV, Commercial Audio, Pro Subwoofers
UPC Code:
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
-
ADI Part Number JF-PD620066W Brand Name JBL Professional Manufacturer Harman International Industries, Inc Manufacturer Part Number PD6200/66-WH Product Model PD6200/66 Product Name PD6200/66 High Output Two-Way Mid/High Frequency Loudspeaker Product Series PD Product Type Speaker Weight 129.63lb
-
Crossover Type 2-way Impedance 8 ohms Sensitivity 116dB
-
Maximum Frequency Response 16 kHz Minimum Frequency Response 240Hz RMS Output Power 300W
-
Application/Usage Auditorium, Club, House of Worship, Performing Arts Center, Sport Center, Theatre Color White Depth 27.8" Height 39" Size 1.50" Width 26.5"
-
Country of Origin MX Features High power 200 mm (8 in) dual-coil CMCD Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence, Large format neodymium HF driver provides clear, intelligible high frequency projection, Large PT Progressive Transition waveguides provide excellent pattern control, low distortion at high SPL levels and smooth frequency response, Rotatable waveguides allow either horizontal or vertical cabinet orientation
