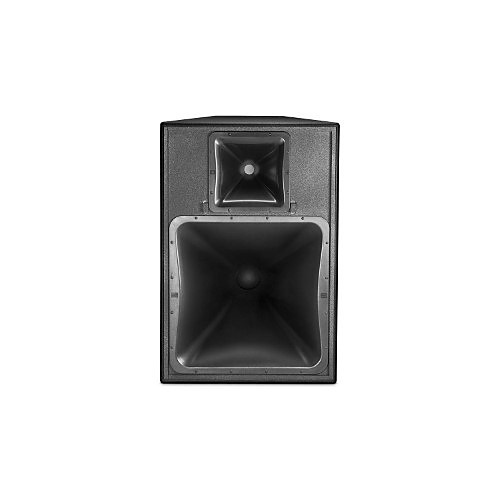

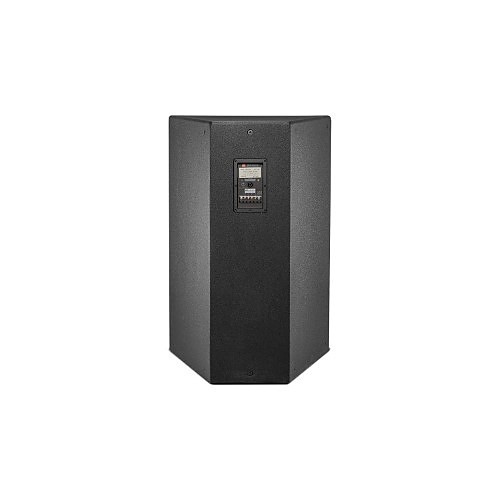

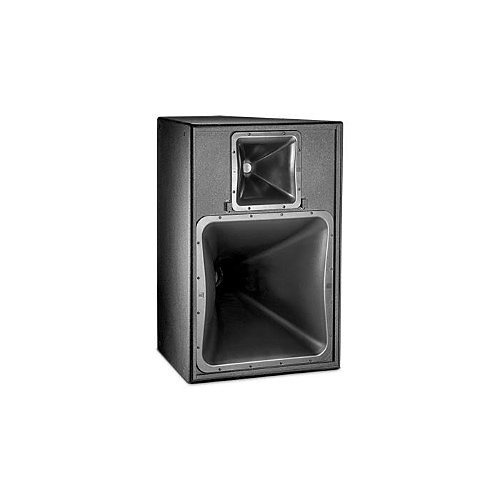

JBL Professional PD6212/43 12" 2-Way Horn-Loaded High Sensitivity Speaker
PD6212/43|JF-PD621243
JBL Professional PD6212/43 12" 2-Way Horn-Loaded High Sensitivity Speaker
PD6212/43|JF-PD621243
Key Features
- 300 mm (12 in) horn-loaded LF and largeformat HF driver, high sensitivity design with high continuous SPL capability
- Large PT Progressive Transition waveguides provide broad band pattern control, low distortion at high SPL levels and smooth frequency response
- Rotatable low and high frequency waveguide allow either horizontal or vertical cabinet orientation
Key Features
- 300 mm (12 in) horn-loaded LF and largeformat HF driver, high sensitivity design with high continuous SPL capability
- Large PT Progressive Transition waveguides provide broad band pattern control, low distortion at high SPL levels and smooth frequency response
- Rotatable low and high frequency waveguide allow either horizontal or vertical cabinet orientation
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 300 mm (12 in) horn-loaded LF and largeformat HF driver, high sensitivity design with high continuous SPL capability
- Large PT Progressive Transition waveguides provide broad band pattern control, low distortion at high SPL levels and smooth frequency response
- Rotatable low and high frequency waveguide allow either horizontal or vertical cabinet orientation
JBL Professional
JBL Professional PD6212/43 12" 2-Way Horn-Loaded High Sensitivity Speaker
PD6212/43 | JF-PD621243
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Precision Directivity Full Range Two-Way Loudspeakers
The PD6212 Series Precision Directivity loudspeakers are designed for applications requiring high output capability with excellent pattern control. The speakers can be utilized alone in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth full range systems.
Main Features
- 300 mm (12 in) horn-loaded LF and largeformat HF driver, high sensitivity design with high continuous SPL capability
- Large PT Progressive Transition waveguides provide broad band pattern control, low distortion at high SPL levels and smooth frequency response
- Rotatable low and high frequency waveguide allow either horizontal or vertical cabinet orientation
- Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes
General Information
Name: JBL Professional PD6212/43 12" 2-Way Horn-Loaded High Sensitivity Speaker
Category: JBL Professional, Pro AV, Commercial Audio, Pro Subwoofers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number JF-PD621243 Brand Name JBL Professional Manufacturer Harman International Industries, Inc Manufacturer Part Number PD6212/43 Product Model PD6212/43 Product Name PD6212/43 High Output Two-Way Full-Range Loudspeaker with 1 x 12" LF Product Series PD6000 Product Type Speaker Weight 175.27 lb
-
Crossover Type 2-way Impedance 8 ohms Sensitivity 109 dB
-
Maximum Frequency Response 16 kHz Minimum Frequency Response 90 Hz RMS Output Power 300W
-
Application/Usage Auditorium, Club, House of worship, Performing Arts Center, Sport Center, Theatre Color Black Depth 35.31" Height 39" Size 12" Width 26.5"
-
Features 300 mm (12 in) horn-loaded LF and largeformat HF driver, high sensitivity design with high continuous SPL capability, Large PT Progressive Transition waveguides provide broad band pattern control, low distortion at high SPL levels and smooth frequency response, Rotatable low and high frequency waveguide allow either horizontal or vertical cabinet orientation, Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes
