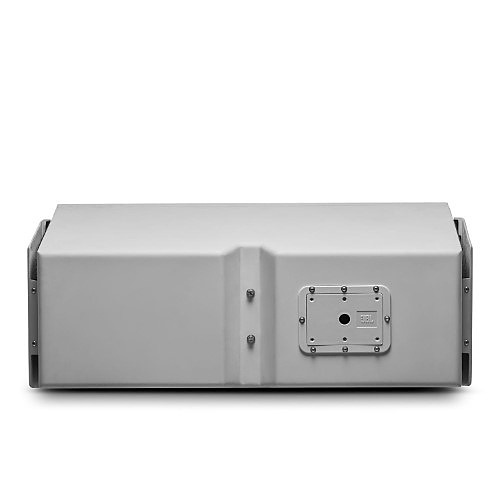

JBL Professional VLA-C2100-GR Speaker, Two-Way Horn-Loaded Array System, Gray
VLA-C2100-GR|JF-VLAC2100G
JBL Professional VLA-C2100-GR Speaker, Two-Way Horn-Loaded Array System, Gray
VLA-C2100-GR|JF-VLAC2100G
Key Features
- Compact line array module optimized for permanent install applications
- Advanced technology component transducers for low weight and high output
- Outdoor IP55 rated enclosure for protection from dust and water
Key Features
- Compact line array module optimized for permanent install applications
- Advanced technology component transducers for low weight and high output
- Outdoor IP55 rated enclosure for protection from dust and water
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Compact line array module optimized for permanent install applications
- Advanced technology component transducers for low weight and high output
- Outdoor IP55 rated enclosure for protection from dust and water
JBL Professional
JBL Professional VLA-C2100-GR Speaker, Two-Way Horn-Loaded Array System, Gray
VLA-C2100-GR | JF-VLAC2100G
Please sign in to view pricing and availability and to add to cart.
Accessories
Non Plenum Audio Cables
ADI # RN-5002501
MODEL # RN-5002501
RN-5002501|RN-5002501
Sign In for Dealer Pricing
Non Plenum Audio Cables
ADI # RN-5001503
MODEL # RN-5001503
RN-5001503|RN-5001503
Sign In for Dealer Pricing
Battery Packs
ADI # WT-OVRC1500U
MODEL # WT-OVRC1500U
WT-OVRC1500U|WT-OVRC1500U
Sign In for Dealer Pricing
Pro Amplifiers
ADI # 8P-EADN12D10
MODEL # 8P-EADN12D10
8P-EADN12D10|8P-EADN12D10
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
The VLA-C2100 uses JBL proven technology components. The high frequency section is horn-loaded for maximum sensitivity and optimum pattern control and features three D2415 drivers featuring 1.5" diameter annular diaphragms, 1.5" voice coils, and neodymium motors. The low-frequency section utilizes dual 2261 10" Differential Drive 3" voice coil drivers. Enclosures feature multi-layer reinforced fiberglass and steel end-panels. Grilles are zinc plated, powder coated 14-gauge perforated steel with an acoustically transparent black grill cloth backing, a hydrophobic mesh underlayer, and a waterproof rail system. The rigging system is inherent to the design of the system. Inter-box angles are selected when the array is assembled. Other accessories include a rigging frame, pull-back bar, and a cardioid kit for the sub.
Main Features
- Compact line array module optimized for permanent install applications
- Advanced technology component transducers for low weight and high output
- Outdoor IP55 rated enclosure for protection from dust and water
- Comprehensive rigging points for creating a line array configuration
- Fiberglass box construction and weatherized components
- Can be bi-amplified for maximum SPL, or fed passively for reduced amplification costs
- 100 deg horizontal coverage pattern
General Information
Name: JBL Professional VLA-C2100-GR Speaker, Two-Way Horn-Loaded Array System, Gray
Category: JBL Professional, Pro AV, Commercial Audio, Pro Speakers
UPC Code:
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
-
ADI Part Number JF-VLAC2100G Brand Name JBL Professional Manufacturer Harman International Industries, Inc Manufacturer Part Number VLA-C2100-GR Product Model VLA-C2100-GR Product Name Two-Way Full Range Loudspeaker with 2 x 10" Differential Drive LF Product Series VLA Product Type Speaker Weight 83lb
-
Crossover Type 2-way
-
Maximum Frequency Response 18 kHz Minimum Frequency Response 86Hz
-
Color Gray Depth 18.1" Durability Dust Resistant, Water Resistant Height 15" Width 33.4"
-
Country of Origin MX Features 100 deg horizontal coverage pattern, Advanced technology component transducers for low weight and high output, Can be bi-amplified for maximum SPL, or fed passively for reduced amplification costs, Compact line array module optimized for permanent install applications, Comprehensive rigging points for creating a line array configuration, Fiberglass box construction and weatherized components, Outdoor IP55 rated enclosure for protection from dust and water Indoor/Outdoor Outdoor
