OCC DX144DALT9QR Distribution Series 144-Strand OM3 Tight Buffered, Indoor / Outdoor, OFNR Rated, 50/125, Multimode, Aqua Jacket
DX144DALT9QR
|JQ-DX144DALT
Shop All OCC
OCC DX144DALT9QR Distribution Series 144-Strand OM3 Tight Buffered, Indoor / Outdoor, OFNR Rated, 50/125, Multimode, Aqua Jacket
DX144DALT9QR | JQ-DX144DALT
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Indoor/Outdoor tight-buffered design allows cables to be installed in intra-building backbone and inter-building campus locations without costly transitions between cable types Ideal configuration for a single termination point requiring multiple fibers 900μm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices, because connectors terminate directly to the fiber No need to splice outdoor cable to indoor cable at building entrance High crush resistance may eliminate the need for innerduct.
Main Features
- Indoor/Outdoor tight-bound tight-buffered design allows cables to be installed in intra-building backbone and inter-building campus locations without costly transitions between cable types
- Ideal configuration for a single termination point requiring multiple fibers
- 900 µm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber
- No need to splice outdoor cable to indoor cable at building entrance
- High crush resistance may eliminate the need for innerduct
- High performance components and construction
- Cable materials are indoor/outdoor - UL-listed OFNR and UV, water and fungus resistant
- UL Listed in accordance with NEC section 770.179(b) for use in vertical runs in building riser shafts or from floor to floor
- Wide operating temperature range of -40°C to 85°C

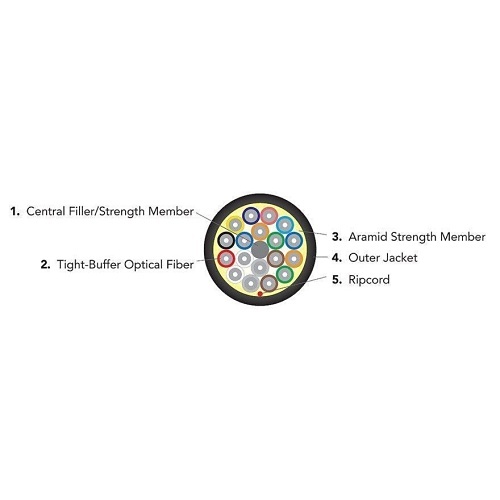

- Helically stranded core for greater flexibility and mechanical protection of the optical fibers
General Information
Name: OCC DX144DALT9QR Distribution Series 144-Strand OM3 Tight Buffered, Indoor / Outdoor, OFNR Rated, 50/125, Multimode, Aqua Jacket
Category: OCC, Wire & Cable, Fiber Optic Cables & Cords, Fiber Optic Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number JQ-DX144DALT Brand Name OCC Manufacturer Part Number DX144DALT9QR
Core/Cladding Diameter 50 µm Fiber Category OM3 Fiber Count 144 Fiber Optic Mode Multimode Jacket Type Riser
Environmental Certification GR-409-CORE, ICEA-S-104-696, ICEA-S-83-596, TIA-568, TIA-598, UL 1651, UL 1666 Features 2-144 fiber configuration is smaller and lighter than comparable sub-grouped cables made by others - ideal for installation in areas with limited space or tight bends, Cable materials are indoor/outdoor - UL-listed OFNR and UV, water and fungus resistant, Can be armored for additional protection in direct burial and aerial installations, Helically stranded core for greater flexibility and mechanical protection of the optical fibers High strength-to-weight ratio, High performance components and construction, Interlocking armor can be applied to cables as an alternative to conduit installation, UL Listed in accordance with NEC section 770.179(b) for use in vertical runs in building riser shafts or from floor to floor, Wide operating temperature range of -40°C to +85°C
