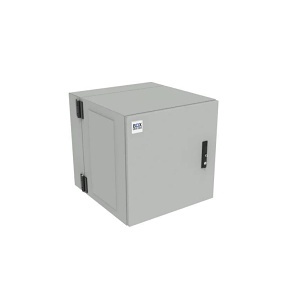

Great Lakes BXWM04-11U26-GY-SH-00000 Double Swing Wall Mount Cabinet, NEMA 250 Type 4, 11U, 26" Depth, Gray
BXWM04-11U26-GY-SH-00000
|JX-11U26GYSH
Shop All Great Lakes Data Racks & Cabinets
Great Lakes BXWM04-11U26-GY-SH-00000 Double Swing Wall Mount Cabinet, NEMA 250 Type 4, 11U, 26" Depth, Gray
BXWM04-11U26-GY-SH-00000 | JX-11U26GYSH
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The BOX DOUBLE SWING WALL MOUNT NE by Great Lakes Data Racks & Cabinets is a robust wall-mount cabinet designed for secure and flexible IT equipment installation. It features a welded cold rolled steel frame and doors, and includes two pairs of depth-adjustable tapped 12-24 mounting rails with RMU marking for 19" mounting, complemented by a package of screws. The side rails support square hole patterns for ¼ turn "D" rings and "T" slots for cinch straps. Additional features include a locking front door with a 150mm x 25mm handle cutout and 3-point latch, internal security mechanisms, external compression twist latches, lift-off rear hinges for ease of installation, and removable gland plates for optional AC unit or fan/filter kit installation, maintaining NEMA rating with rain shrouds installed.
Main Features
- Welded frame and doors constructed of cold rolled steel
- Two pair of depth adjustable tapped 12-24 mounting rails (with RMU marking) for 19" mounting includes package of screws
- Side face of rails feature square hole pattern for ¼ turn "D" rings, and "T" slots for cinch straps
- Front door with 150mm x 25mm Standard door handle cutout with locking swing handle with hasp and 3-pt latch optional quarter-turn locks available
- Internal security mechanism through center section allows opening the center/rear section only when the front door is open
- External rear compression twist latches between center and rear section
- Lift off rear hinges for easy installation
- Removable gland plates accept optional AC unit or fan/filter kit with rain shrouds
- Wall mount configured with AC includes .5" thick R3 insulation (mechanically fastened)
- Wall mount configured with fan/filter kit must have rain shrouds installed to maintain NEMA rating
General Information
Name: Great Lakes BXWM04-11U26-GY-SH-00000 Double Swing Wall Mount Cabinet, NEMA 250 Type 4, 11U, 26" Depth, Gray
Category: Great Lakes Data Racks & Cabinets, Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code:
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number JX-11U26GYSH Brand Name Great Lakes Data Racks & Cabinets Manufacturer Part Number BXWM04-11U26-GY-SH-00000 Product Name Box Double Swing Wall Mount Product Type Mounting Kit
Color Gray Depth 26" Height 24" Width 24"
Country of Origin US
