Great Lakes GL24N12-24-B-AC00 24U Enclosure with 12" Depth and AC Fan, Black
GL24N12-24-B-AC00
|JX-GL24N124B
Shop All Great Lakes Data Racks & Cabinets
Great Lakes GL24N12-24-B-AC00 24U Enclosure with 12" Depth and AC Fan, Black
GL24N12-24-B-AC00 | JX-GL24N124B
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

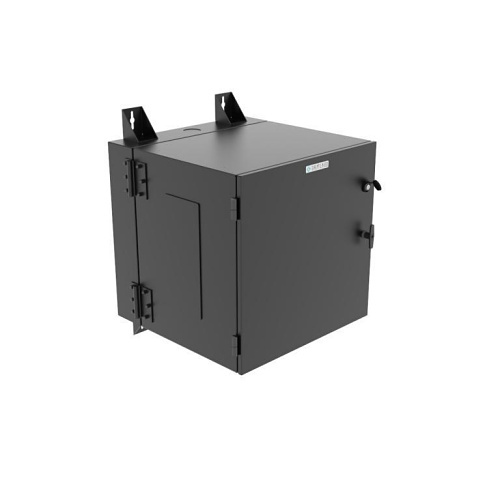

The Great Lakes GL24N12-24-B-AC00 is an indoor enclosure designed to safeguard equipment with protection against dust, falling dirt, water, and non-corrosive liquids. It features two pairs of #12-24 tapped mounting rails that are depth adjustable, along with 2" conduit knockouts on the rear section. The enclosure includes removable gland plates for an AC unit and incorporates front and rear draw latches plus a "T" handle that maximize compression with the center section. A bulb gasket ensures a positive environmental seal, while optional NEMA-rated access control enhances security. Constructed in black, it meets UL508A, NEMA 250 Type 12K, and RoHS II standards.
Main Features
- Intended for indoor use to provide a degree of protection against dust, falling dirt, water and non-corrosive liquids
- Two pair of #12-24 tapped mounting rails (depth adjustable)
- 2" conduit knockouts on rear section
- Gland plates on center section can be removed for AC unit
- Front and rear draw latches and "T" handle maximize compression with the center section
- Bulb gasket creates a positive environmental seal for indoor use to protect against ingress of solid foreign objects
- Optional NEMA-rated access control available
- Color - Black
- Standards - UL508A, NEMA 250 Type 12K, RoHS II
General Information
Name: Great Lakes GL24N12-24-B-AC00 24U Enclosure with 12" Depth and AC Fan, Black
Category: Great Lakes Data Racks & Cabinets, Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number JX-GL24N124B Brand Name Great Lakes Data Racks & Cabinets Manufacturer Part Number GL24N12-24-B-AC00
Depth 24" Height 24"
Environmental Certification RoHS, UL Environmentally Friendly Yes Features Bulb gasket creates a positive environmental seal for indoor use to protect against ingress of solid foreign objects, Front and rear draw latches and "T" handle maximize compression with the center section, Reversible mounting for left-hand or right-hand opening (units with AC units cannot be reversed)
