Kramer 50-80572290 4K 60 HDMI Extender with USB, Ethernet, RS–232 and IR over Extended Reach HDBaseT 3.0
50-80572290|KR-EXT3XRTR
Kramer 50-80572290 4K 60 HDMI Extender with USB, Ethernet, RS–232 and IR over Extended Reach HDBaseT 3.0
50-80572290|KR-EXT3XRTR
Key Features
- Professional HDBaseT extender for providing extended-reach signals over twisted-pair copper infrastructures. EXT3-XR-TR is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use reco mmended Kramer cables
- HDCP 2.3, EDID and CEC signals are passed through from the source to the display. Supports HDR10, deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolbsy TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0
- Transmitter-side extender mirrors input HDMI signal to loop output port for connecting a local monitor or an additional unit in a daisy chain
Key Features
- Professional HDBaseT extender for providing extended-reach signals over twisted-pair copper infrastructures. EXT3-XR-TR is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use reco mmended Kramer cables
- HDCP 2.3, EDID and CEC signals are passed through from the source to the display. Supports HDR10, deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolbsy TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0
- Transmitter-side extender mirrors input HDMI signal to loop output port for connecting a local monitor or an additional unit in a daisy chain
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Professional HDBaseT extender for providing extended-reach signals over twisted-pair copper infrastructures. EXT3-XR-TR is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use reco mmended Kramer cables
- HDCP 2.3, EDID and CEC signals are passed through from the source to the display. Supports HDR10, deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolbsy TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0
- Transmitter-side extender mirrors input HDMI signal to loop output port for connecting a local monitor or an additional unit in a daisy chain
Kramer Electronics
Kramer 50-80572290 4K 60 HDMI Extender with USB, Ethernet, RS–232 and IR over Extended Reach HDBaseT 3.0
50-80572290 | KR-EXT3XRTR
Please sign in to view pricing and availability and to add to cart.
Accessories
Battery Packs
ADI # WT-OVRC1500U
MODEL # WT-OVRC1500U
WT-OVRC1500U|WT-OVRC1500U
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB800IP12
MODEL # WT-WB800IP12
WT-WB800IP12|WT-WB800IP12
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

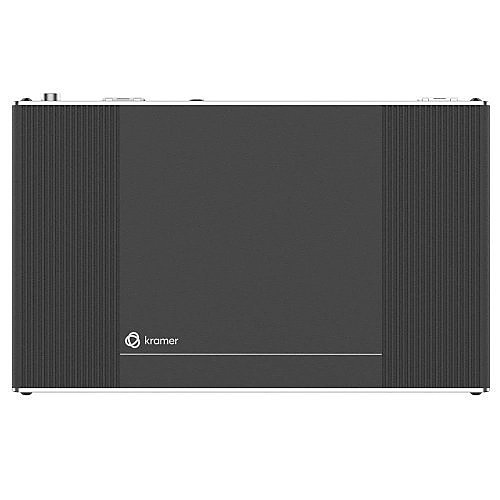

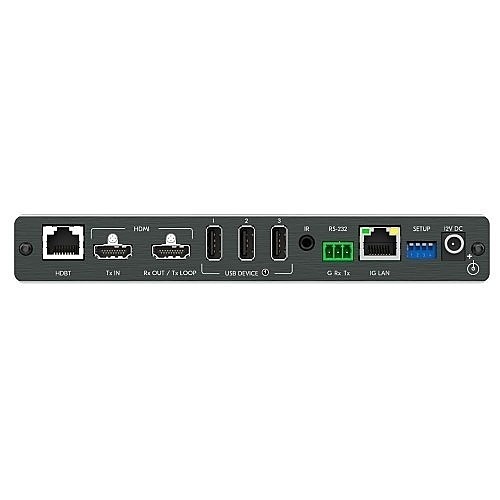

EXT3-XR-TR is a high-performance, extended-reach HDBaseT 3.0 extender for 4K60 Hz (4:4:4) HDMI, USB, Ethernet, RS-232, and IR signals over twisted pair, flexibly set as transmitter-side or receiver-side device. EXT3-XR-TR transmitter-side converts all input signals into the transmitted HDBaseT 3.0 signal. EXT3-XR-TR receiver-side receives the HDBaseT 3.0 signal and converts it back into the original input signals. It extends video signals to up 100m (330') over CAT copper cables at up to 4K at 60 Hz (4:4:4) video resolution.
Main Features
- Professional HDBaseT extender for providing extended-reach signals over twisted-pair copper infrastructures. EXT3-XR-TR is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use reco mmended Kramer cables
- HDCP 2.3, EDID and CEC signals are passed through from the source to the display. Supports HDR10, deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolbsy TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0
- Transmitter-side extender mirrors input HDMI signal to loop output port for connecting a local monitor or an additional unit in a daisy chain
- An active USB host is connected to the extender at either the transmitter or receiver sides. USB 2.0 signals are extended between the extender transmitter and receiver sides, enabling connection of the active USB host to both local and remote USB devices, such as camera and audio devices, or HID (Human Interface Devices) mouse or keyboard devices
- Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound
- Ethernet interface data flows in both directions, allowing extension of up to 1 Gbps Ethernet connectivity for LAN communication and device control
- Serial interface data flows in both directions, allowing data transmission and device control
- IR Interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line
- Status LED indicators for HDMI, Loop, HDBT, and USB active host ports, facilitate easy local maintenance and troubleshooting
- MegaTOOLS fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter
General Information
Name: Kramer 50-80572290 4K 60 HDMI Extender with USB, Ethernet, RS–232 and IR over Extended Reach HDBaseT 3.0
Category: Kramer Electronics, Pro AV, Commercial Video Signal Distribution, Pro HDMI Extenders
UPC Code: 7291063098896
Country of Origin: Israel. Country of origin is subject to change.
Specifications
-
ADI Part Number KR-EXT3XRTR Brand Name Kramer Electronics Manufacturer Kramer Electronics LTD Manufacturer Part Number 50-80572290 Product Line Series 3 Product Model 50-80572290 Product Name 4K60 4:4:4 HDMI Extender with USB, Ethernet, RS-232, & IR over Extended-Reach HDBaseT 3.0 Product Series Series 3 Product Type Extender
-
Maximum Video Resolution 3840 x 2160
-
Number of HDMI Inputs 1 Number of HDMI Outputs 1
-
Country of Origin IL
