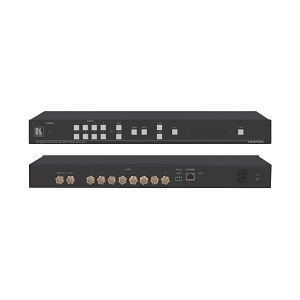

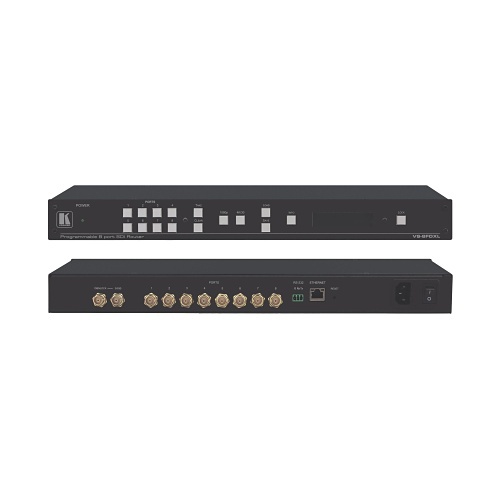

Kramer 20-80391030 8-Port 3G-SDI Matrix Switcher with Interchangeable Connection
20-80391030
|KR-VS8FDXL
Shop all Kramer Electronics
Kramer 20-80391030 8-Port 3G-SDI Matrix Switcher with Interchangeable Connection
20-80391030 | KR-VS8FDXL
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
VS-8FDxl is an 8-port matrix switcher for SDI signals for up to 3G HD-SDI. Each SDI port can be defined as either an input or output.
Main Features
- Max. Data Rate - 3Gbps,Rental and staging
- HDTV Compatible
- Multi-Standard Operation - SDI (SMPTE 259M/344M), HD-SDI (SMPTE 292M), 3G HD-SDI (SMPTE 424M)
- Kramer Equalization and re-Klocking Technology - Rebuilds the digital signal to travel longer distances
- Supports ANC Data - Embedded audio, teletext, time code, etc
- Cable Equalization - Up to 350m for SD signals, 140m for 1.5GHz HD signals and 120m for 3GHz 3G signals
- Clean Switching - When the sources are genlocked to the selected genlock input with a difference of no more than two lines of video
- Versatile Genlocking - Using an analog signal
- Memory Locations - Stores 8 multiple switches as presets to be recalled and executed when needed
General Information
Name: Kramer 20-80391030 8-Port 3G-SDI Matrix Switcher with Interchangeable Connection
Category: Kramer Electronics, Pro AV, Commercial Video Signal Distribution, Pro HDMI Switchers
UPC Code:
Country of Origin: Israel. Country of origin is subject to change.
Specifications
ADI Part Number KR-VS8FDXL Brand Name Kramer Electronics Manufacturer Part Number 20-80391030
