Ubiquiti USW-Pro-Max-24 UniFi 24-Port Layer 3 Etherlighting Switch with 2.5 GbE
USW-PRO-MAX-24|KX-SWPRMAX24
Ubiquiti USW-Pro-Max-24 UniFi 24-Port Layer 3 Etherlighting Switch with 2.5 GbE
USW-PRO-MAX-24|KX-SWPRMAX24
Key Features
- Layer 3 Switch provides reliable, efficient connectivity to ensure maximum feasibility
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- AC/DC power source for dependable power supply
Key Features
- Layer 3 Switch provides reliable, efficient connectivity to ensure maximum feasibility
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- AC/DC power source for dependable power supply
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Layer 3 Switch provides reliable, efficient connectivity to ensure maximum feasibility
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- AC/DC power source for dependable power supply
Ubiquiti
Ubiquiti USW-Pro-Max-24 UniFi 24-Port Layer 3 Etherlighting Switch with 2.5 GbE
USW-PRO-MAX-24 | KX-SWPRMAX24
Please sign in to view pricing and availability and to add to cart.
Accessories
Battery Packs
ADI # WT-OVRC1500U
MODEL # WT-OVRC1500U
WT-OVRC1500U|WT-OVRC1500U
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

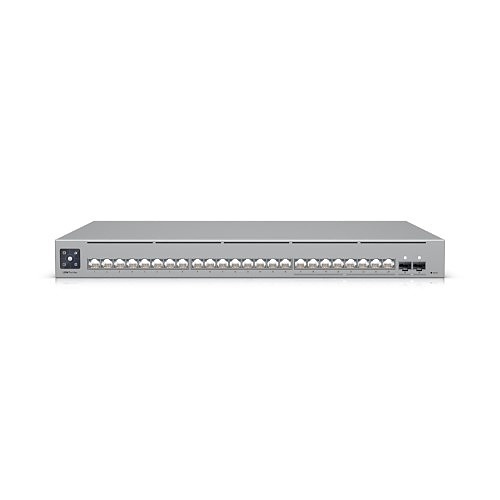

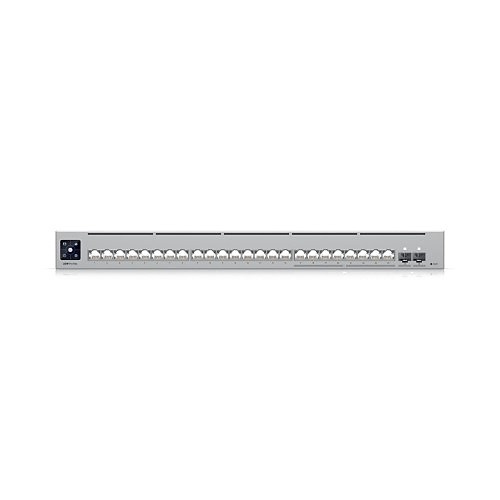

Expand your business's network with the Pro Max 24-Port 2.5G / 1G Managed Network Switch from Ubiquiti Networks to support additional computers, servers, and other compatible devices. Eight 2.5G Ethernet ports and sixteen 1G ports are available with Etherlighting technology illuminating each of them to indicate their location, speed/link status, and native VLAN/network configurations when used with compatible cables. Two SFP+ ports are also available for up to 10 Gb/s uplinks.
Main Features
- Layer 3 Switch provides reliable, efficient connectivity to ensure maximum feasibility
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- AC/DC power source for dependable power supply
- Can work as layer 3 routing for scalable network design
- Rack mounting enables you to organize wires & secure cables for professional installation
- 2.5 Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
General Information
Name: Ubiquiti USW-Pro-Max-24 UniFi 24-Port Layer 3 Etherlighting Switch with 2.5 GbE
Category: Ubiquiti, Video Surveillance, Data Comm & Networking, Networking Devices, Hubs, Routers & Switches, Network Switches, Network Switches
UPC Code: 810084692622
Country of Origin: +1. Country of origin is subject to change.
Specifications
-
ADI Part Number KX-SWPRMAX24 Brand Name Ubiquiti Manufacturer Ubiquiti Inc. Manufacturer Part Number USW-PRO-MAX-24 Product Line UniFi Product Model USW-PRO-MAX-24 Product Name Ubiquiti Networks Pro Max 24-Port 2.5G / 1G Managed Network Switch Product Series USW Pro Max Product Type Network Switch Weight 9.5 lb
-
Media Type Supported Optical Fiber, Twisted Pair Power Consumption 50W
-
Expansion Slot Type SFP+ Number of SFP+ Slots 2 Number of Total Expansion Slots 2
-
Modular Yes Network (RJ-45) Yes Total Number of Network Ports 24
-
Manageable Yes
-
Network Technology 10/100/1000Base-T, 10GBase-X, 2.5GBase-T
-
Ethernet Technology 10 Gigabit Ethernet Layer Supported 3
-
Compatible Rack Unit 1U Depth 12.8" Height 1.7" Material SGCC Steel Width 17.4"
-
Frequency 50 Hz|60 Hz Input Voltage 100-240V AC Power Source AC, DC
-
Limited Warranty 1-Year
-
Features (16) GbE RJ45 ports, (2) 10G SFP ports, (8) 2.5 GbE RJ45 ports, DC power backup ready, Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network, Managed with UniFi Network 8.0.24 and later, Pair with UniFi Etherlighting Patch Cables for optimal brightness.
