Ubiquiti UISP-S-PRO 24-Port UISP Switch Pro, 220W, PoE, White

Brand: Ubiquiti
ADI #:KX-UISPSPRO Model #: UISP-S-PRO  Name: Ubiquiti UISP-S-PRO 24-Port UISP Switch Pro, 220W, PoE, White
  • (24) GbE RJ45 ports, including (16) with 27V passive PoE output|(4) SFP ports
  • 220W (27V) total PoE availability, 15W/port (2-pair) / 30W/port (4-pair)
  • Port isolation, speed limiting, and DHCP snooping functionality

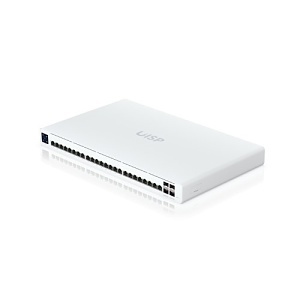

Image of KX-UISPSPRO

Product Overview

220W (27V) PoE switch with (24) GbE RJ45 ports, including (16) with 27V passive PoE, and (4) 10G SFP ports.

General Information

Name : Ubiquiti UISP-S-PRO 24-Port UISP Switch Pro, 220W, PoE, White , Ubiquiti
Category : Network Switches
UPC Code : 810010074201
Country of Origin : +1. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : KX-UISPSPRO
Brand Name : Ubiquiti
Manufacturer : Ubiquiti Inc.
Manufacturer Part Number : UISP-S-PRO
Packaged Quantity : 1
Product Model : UISP-S-PRO
Product Name : UISP Switch Pro
Product Type : Switch
Weight (Approximate) (g) : 4000

Technical Information

Media Type Supported : Optical Fiber, Twisted Pair
Power Consumption : 4.4 A|9.3 A

I/O Expansions

Expansion Slot Type : SFP+
Number of SFP+ Slots : 4
Number of Total Expansion Slots : 4

Interfaces/Ports

Network (RJ-45) : Yes
Port/Expansion Slot Details : 24 x Gigabit Ethernet Network, 4 x 10 Gigabit Ethernet Expansion Slot
Total Number of Network Ports : 24

Management & Protocols

Manageable : Yes

Network & Communication

Ethernet Technology : 10 Gigabit Ethernet, Gigabit Ethernet
Layer Supported : 2

Physical Characteristics

Depth : 10.5"
Depth (mm) : 266.7
Form Factor : Desktop
Height : 1.7"
Height (mm) : 43.18
Product Material : ABS, Polycarbonate, Steel
Weight (Approximate) : 4 kg
Width : 17.4"
Width (mm) : 441.96

Power Description

Frequency : 50/60 Hz
Frequency (Hz) : 50/60
Input Voltage : 120V AC, 230V AC
Input Voltage (V AC) : 240
PoE Budget (W) : 220
Power Consumption (W) : 30
Power Source : Power Supply

Miscellaneous

Energy Star : No
Environmental Certification : CE, FCC, IC
Features : (24) GbE RJ45 ports, including (16) with 27V passive PoE output, (4) SFP ports, 1.3" LCM color touchscreen, 220W (27V) total PoE availability, 15W/port (2-pair) / 30W/port (4-pair), Additional Power TransPort input for DC redundancy, Available for switches updated to version 1.6.0 and later., Port isolation, speed limiting, and DHCP snooping functionality, Standalone management through local web interface and UISP Application integration
