Ubiquiti USW-AGGREGATION 8-Port Aggregation Layer 2 Switch

Brand: Ubiquiti
ADI #:KX-USWAGG Model #: USW-AGGREGATION  Name: Ubiquiti USW-AGGREGATION 8-Port Aggregation Layer 2 Switch
  • Effectively increases available bandwidth on your network
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
Image of KX-USWAGG

Product Overview

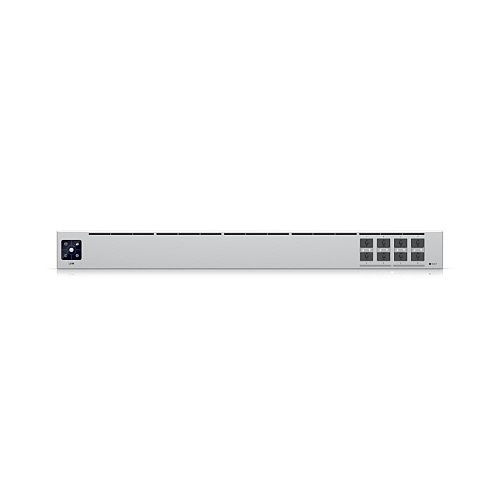

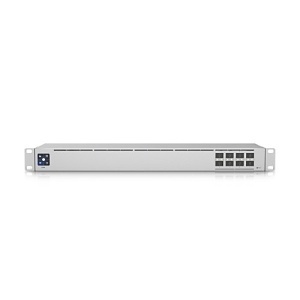

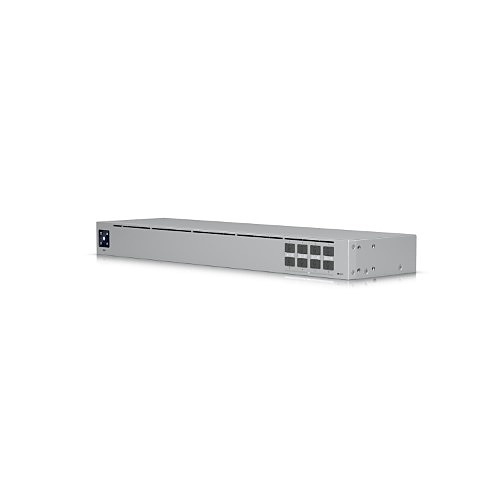

Enhance the speed, capacity, and availability of your network with the UniFi 8-Port 10G SFP+ Managed Aggregation Switch from Ubiquiti Networks. This compact managed Layer 2 switch offers eight 10G SFP+ ports and supports high-bandwidth links, making it ideal for aggregation switching to any UniFi device that deploys various interconnect topologies. The Aggregation Switch has a 160 Gb/s switching capacity with a 119.04 Mpps forwarding rate, features steel construction with a fanless design, and can be rack mounted using the included kit. Its front panel includes a 1.3" touchscreen with augmented reality switch management through the supported app for fast and easy port identification. Use the UniFi Network Controller platform to configure, manage, and monitor your network devices.

General Information

Name : Ubiquiti USW-AGGREGATION 8-Port Aggregation Layer 2 Switch , Ubiquiti
Category : Network Switches
UPC Code : 810010074157
Country of Origin : +1. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : KX-USWAGG
Brand Name : Ubiquiti
Manufacturer : Ubiquiti Inc.
Manufacturer Part Number : USW-AGGREGATION
Product Line : UniFi
Product Model : USW-AGGREGATION
Product Name : Ubiquiti Networks UniFi 8-Port 10G SFP+ Managed Aggregation Switch
Product Type : Network Switch
Weight (Approximate) (g) : 2700

Technical Information

Material : SGCC Steel
Media Type Supported : Optical Fiber
Power Consumption : 30W

I/O Expansions

Expansion Slot Type : SFP+
Number of SFP+ Slots : 8
Number of Total Expansion Slots : 8

Interfaces/Ports

Modular : Yes
Network (RJ-45) : Yes
Port/Expansion Slot Details : 8 x 10 Gigabit Ethernet Expansion Slot
Total Number of Network Ports : 8

Management & Protocols

Manageable : Yes

Media & Performance

Network Technology : 10GBase-X

Network & Communication

Ethernet Technology : 10 Gigabit Ethernet
Layer Supported : 2

Physical Characteristics

Compatible Rack Unit : 1U
Depth : 4.7"
Depth (mm) : 120.000
Form Factor : Rack Mount
Height : 1.7"
Height (mm) : 43.700
Weight (Approximate) : 6 lb
Width : 17.4"
Width (mm) : 442.400

Power Description

Frequency : 50/60 Hz
Frequency (Hz) : 50/60
Input Voltage : 100-240V AC
Input Voltage (V AC) : 100-240
Number of Power Supplies Installed : 1
Power Consumption (W) : 30
Power Source : AC, DC

Warranty

Limited Warranty : 1 Year

Miscellaneous

Features : 119.04 Mpps Forwarding Rate, 160 Gb/s Switching Capacity, Fanless, silent cooling
