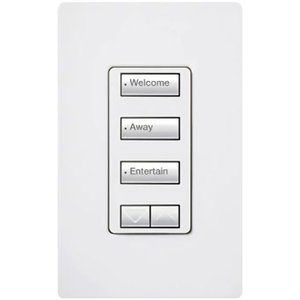

Lutron RRD-HN3BSRL-SW RadioRA seeTouch Wall-Mount CL Hybrid Keypad, 3-Button w/ Raise-Lower, Snow White
Lutron RRD-HN3BSRL-SW RadioRA seeTouch Wall-Mount CL Hybrid Keypad, 3-Button w/ Raise-Lower, Snow White
Lutron RRD-HN3BSRL-SW RadioRA seeTouch Wall-Mount CL Hybrid Keypad, 3-Button w/ Raise-Lower, Snow White
RRD-HN3BSRL-SWÂ |Â L1-RRDHN3BSW
Please sign in to view pricing and availability and to add to cart.
Product Overview
RadioRA® 2 CL® Hybrid Keypads
RadioRA® 2 CL® Hybrid Keypads function as a dimmer and keypad combined into a single device. CL® Hybrid Keypads are great for retro-fit applications since they eliminate the need to install two separate devices.
CL® Hybrid Keypads are neutral-wire controls that can be used with small loads, such as screw-in CFL/LED lamps. Normal keypad operation will be available even if the attached load is not installed or the lamp is burned out.
CL® Hybrid Keypads can be controlled as part of a lighting control system and incorporate advanced features such as fade on/fade off and rapid full on.
CL® Hybrid Keypads feature large, easy-to-use buttons, plus a unique backlit engraving option that makes them readable any time of the day or night. The CL® Hybrid Keypad buttons are rounded, allowing engraving to be displayed at an upward angle, increasing readability. CL® Hybrid Keypads include a Front Accessible Service Switch (FASSTM) for safe lamp replacement.
Use only Lutron® Designer (Claro® or Satin Colors®) wallplates. The mechanical design of the keypad is compatible with Lutron® wallplates ONLY and is NOT compatible with any other manufacturer'swallplate. Wallplates are sold separately. Lutron® Claro® and Satin Colors® wallplates snap on with no visible means of attachment. Replacement Button Kits are available in a variety of colors and with custom engraving to identify clearly each button's function.
CL® Hybrid Keypads are designed for use with permanently installed incandescent, tungsten halogen, CFL/LED, magnetic low-voltage, or Lutron® Hi-lume® A-Series LTE LED drivers only.
Main Features
- Keypad buttons are programmable to select scene or room preset levels or positions.
- At the press of a keypad button, lights fade ON or OFF to desired levels and shades/ draperies open or close to desired positions.
- Adjustable backlight intensity.
- Prepaid engraving included. Redeemable for one engraved Replacement Button Kit.
- Internal dimmer is assigned to top button by default. Tap top button to toggle load ON/OFF.
- Internal dimmer can be assigned to any button on the C?L® Hybrid Keypad and can be programmed to be controlled by any keypad.
- Designed for use with a wide variety of approved LEDs.
- Can be installed in either single location or multiple-location (with Remote Dimmer) installations.
General Information
Specifications
-
ADI Part Number L1-RRDHN3BSW Brand Name Lutron Electronics Manufacturer Lutron Electronics Co., Inc Manufacturer Part Number RRD-HN3BSRL-SW Product Line RadioRA 2 C?L Product Model RRD-HN3BSRL-SW Product Name RadioRA 2 C?L RRD-HN3BSRL-SW Hard Wire Dimmer/Switch Combo Product Type Hard Wire Dimmer/Switch Combo Â
-
Controllable Function Light Control Dimmer Type Button Maximum Frequency (Hz) 60 Number of Buttons 3 Â
-
Application/Usage Indoor Color White Form Factor Wall Mount Â
-
Input Voltage 120V AC Input Voltage (V AC) 120 Maximum Frequency 60 Hz Minimum Frequency 50 Hz Minimum Frequency (Hz) 50 Power Rating 750 mW Power Rating (W) 0.75 Â
-
Switch Type Button Â
-
Limited Warranty 1 Year Â
-
Additional Information 3-Button with Raise/Lower Keypad Neutral-Wire Dimmer. 450 W/450 VA (Incandescent/Halogen/ Magnetic Low Voltage) or 100 W (approved CFL/LED) Features Adjustable Backlight Â
