Product Overview
Machine Screws are uniformly threaded screws designed to be fastened into tapped holes, or used in conjunction with nuts to join two or more assemblies together. Typical applications for machine screws include fastening components of tools, appliances, machines, and electronic devices. ASME B18.3 covers the general requirements for the dimensions and performance of Steel Machine Screws.
General Information

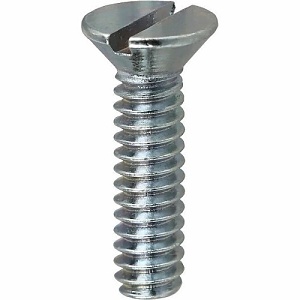

Name : Dottie FM38112 Screw, 3/8''-16 1-1/2'' Slotted Flat Head Machine Screw , Dottie
Category : Screws
UPC Code : 00781002652564
Specifications
General Information
ADI Part Number : LH-FM38112
Brand Name : Dottie
Connecting Thread Type : 2A
Head Diameter : 0.717'' - 0.670''
Manufacturer : L.H. Dottie
Manufacturer Part Number : FM38112
Package Length : 6.2
Package Net Weight : 5.22
Packaged Quantity : 100
Product Model : FM38112
Product Name : 3/8''-16 x 1-1/2'' Slotted Flat Head Machine Screw
Product Type : Screw
Technical Information
Material : Carbon Steel
Product Information
Drive Type : Slotted
Fastener Type : Machine Screw
Finishing : Zinc Plated
Head Type : Flat
Maximum Fractional Diameter : 0.37"
Maximum Fractional Diameter (mm) : 9.398
Maximum Length : 1.5"
Maximum Length (mm) : 38.1
Threads Per Inch (TPI) : 16
Miscellaneous
Certifications & Standards : Yes
Environmental Certification : California Proposition 65, RoHS
Environmentally Friendly : Yes
Features : Corrosion Resistant
