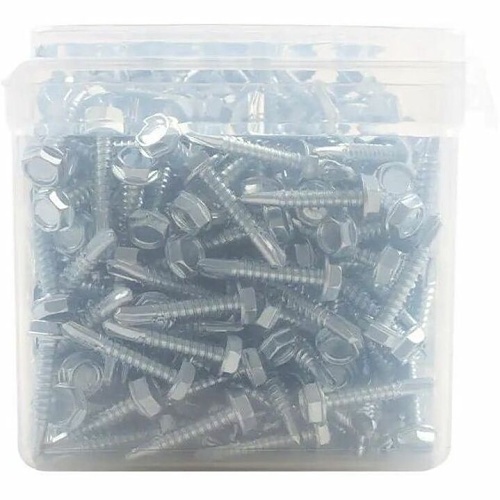

Dottie TEKHT101 Screw, #10 1" Hex Washer Head Self Drilling Screw, Tuff Pack
TEKHT101|LH-TEKHT101
Dottie TEKHT101 Screw, #10 1" Hex Washer Head Self Drilling Screw, Tuff Pack
TEKHT101|LH-TEKHT101
Key Features
- #10 1" Hex Washer Head
- Self-drilling with #2 drill point
- Cold-heading steel construction
Key Features
- #10 1" Hex Washer Head
- Self-drilling with #2 drill point
- Cold-heading steel construction
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- #10 1" Hex Washer Head
- Self-drilling with #2 drill point
- Cold-heading steel construction
Dottie
Dottie TEKHT101 Screw, #10 1" Hex Washer Head Self Drilling Screw, Tuff Pack
TEKHT101 | LH-TEKHT101
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Self-Drilling Screws are manufactured from cold-heading steel and feature a #2 drill point. The unique tip design allows them to drill, tap, and fasten metal to metal objects in one operation, without the need to pre-drill. This creates the optimal drill performance and thread forming experience. The most common applications are used on metal to metal, but they can also be used in a wide variety of other applications. IFI-113 and ASTM C954 cover the material and performance requirements for steel self-drilling screws.
Main Features
- #10 1" Hex Washer Head
- Self-drilling with #2 drill point
- Cold-heading steel construction
- Drills, taps, and fastens in one step
- No pre-drilling required
- Ideal for metal-to-metal applications
- Complies with IFI-113 and ASTM C954 standards
General Information
Name: Dottie TEKHT101 Screw, #10 1" Hex Washer Head Self Drilling Screw, Tuff Pack
Category: Dottie, Tools & Hardware, Fasteners, Screws
UPC Code: 781002178101
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number LH-TEKHT101 Brand Name Dottie Connecting Thread Type BSD Manufacturer L.H. Dottie Manufacturer Part Number TEKHT101 Packaged Quantity 400 Product Model TEKHT101 Product Name #10 x 1'' Hex Washer Head Self Drilling Screw (Tuff Pack) Product Type Screw Sustainability Certificates Yes
-
Material Carbon Steel
-
Drive Type Hex Fastener Type Self Drilling Screw Finishing Zinc Plated Head Type Hex Washer Length 1" Threads Per Inch (TPI) 16
-
Environmental Certification RoHS Environmentally Friendly Yes
