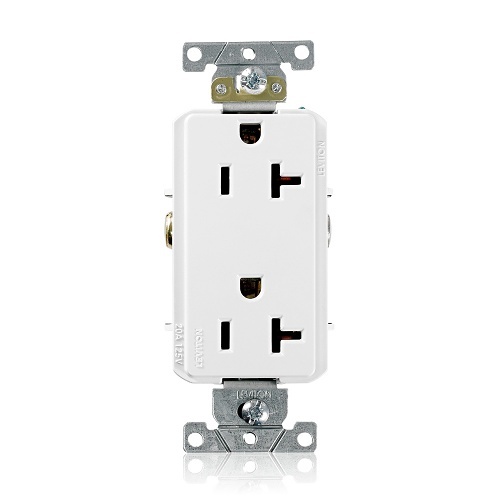

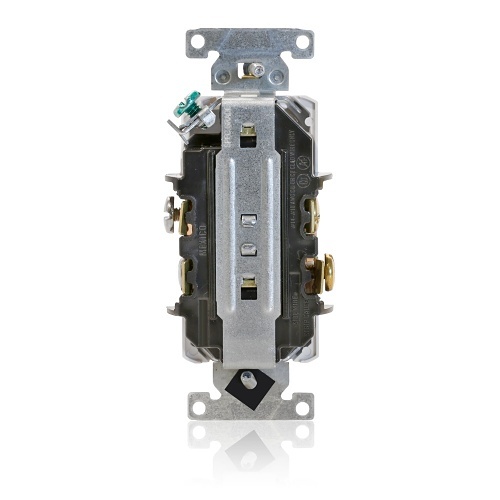

Leviton 16342-W Duplex Receptacle Decora, 2-Pole 3-Wire, 5-20R, 20A, 125V, White
16342-W|LV-16342W
Leviton 16342-W Duplex Receptacle Decora, 2-Pole 3-Wire, 5-20R, 20A, 125V, White
16342-W|LV-16342W
Key Features
- Heavy-Duty Industrial Specification Grade
- Smooth Face Design
- 20 Amp, 125 Volt Capacity
Key Features
- Heavy-Duty Industrial Specification Grade
- Smooth Face Design
- 20 Amp, 125 Volt Capacity
.jpg)
Key Features
- Heavy-Duty Industrial Specification Grade
- Smooth Face Design
- 20 Amp, 125 Volt Capacity
Leviton
Leviton 16342-W Duplex Receptacle Decora, 2-Pole 3-Wire, 5-20R, 20A, 125V, White
16342-W | LV-16342W
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White
Leviton's line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Leviton's line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Main Features
- Heavy-Duty Industrial Specification Grade
- Smooth Face Design
- 20 Amp, 125 Volt Capacity
- Side Wire Connection
- NEMA 5-20R, 2-Pole, 3-Wire
- Self-Grounding Feature
- Ideal for Demanding Environments
- Suitable for Hotels, Schools, Hospitals
- Available in Various Configurations
General Information
Name: Leviton 16342-W Duplex Receptacle Decora, 2-Pole 3-Wire, 5-20R, 20A, 125V, White
Category: Leviton, Data Comm & Networking, Wall Plates & Mounts, Wall Plate Inserts
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number LV-16342W Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 16342W Product Line Decora Plus Product Name 20 Amp Decora Plus Duplex Receptacle/Outlet, Industrial Grade, Self-Grounding Product Type Power Socket
-
Receptacle Type NEMA 5-20R
-
Color White Material Thermoplastic Nylon
-
Current Rating 20 A Voltage Rating 125V AC
-
Limited Warranty 10-Year
-
Certifications & Standards ANSI : C-73CSA C22.2 No. 42 : File LR-406NOM : 057UL498 : File E13399 Country of Origin MX
