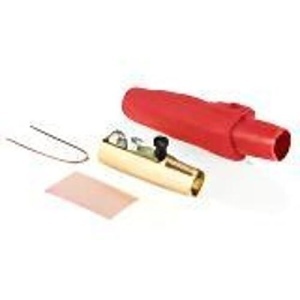

Leviton 16D33-4UR Female Detachable Plug 2 Set Screws, Pre-Cut 4/0, Red
16D33-4UR
|LV-16D334UR
Shop all Leviton
Leviton 16D33-4UR Female Detachable Plug 2 Set Screws, Pre-Cut 4/0, Red
16D33-4UR | LV-16D334UR
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
16 Series Taper Nose Cam-Type Female Plug, Contact and Insulator, Detachable, Double Set Screw Termination, Pre-cut For 4/0 AWG, 400 Amp Max, Type 3R When Mated, Red- Bulk Pack (25) Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications.These sleeves are precut to fit 4/0 cable.This eliminates the time lost cutting cam sleeves to size and also ends possible waste of product that can occur from errors in manual cutting. NEMA 3R rated for outdoor use when mated UL; 1691, 508 – 35k A / 600V Short Circuit Current Rating Color-coding provides fast and easy phase identification Common applications; entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications.
Main Features
- 16 Series Taper Nose Cam-Type Female Plug
- Detachable with Double Set Screw Termination
- Pre-cut for 4/0 AWG, 400 Amp Max
- Type 3R Rated for Outdoor Use When Mated
- UL 1691, 508 – 35k A / 600V Short Circuit Rating
- Color-coded for Easy Phase Identification
- Ideal for Entertainment, Oil & Gas, Mining
- Suitable for Power Distribution & Construction
- Red Bulk Pack of 25
- Bulk Pack of 25 for Convenience
General Information
Name: Leviton 16D33-4UR Female Detachable Plug 2 Set Screws, Pre-Cut 4/0, Red
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-16D334UR Brand Name Leviton Manufacturer Part Number 16D33-4UR Product Name Female Plug, Pre-cut For 4/0 AWG, Double Set Screw Termination Product Type Female Plug
Color Red
Voltage Rating 600V
