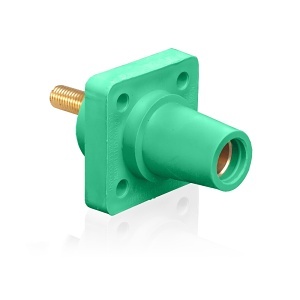

Leviton 16R24-1UG 16 Series Female Panel Receptacle, 90-Degree, Threaded Stud Termination, 1.125"
16R24-1UG
|LV-16R241UG
Shop All Leviton
Leviton 16R24-1UG 16 Series Female Panel Receptacle, 90-Degree, Threaded Stud Termination, 1.125"
16R24-1UG | LV-16R241UG
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
16 Series Female Panel Receptacle, Cam-Type, 90-Degree, Threaded Stud Length - 1.125" , Taper Nose, 400 Amp Max, Cable Range - #2 to 4/0 AWG, Green Leviton's Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
Single or double set screw or crimp tube termination
NEMA 3R rated for outdoor use when mated
Designed with cylindrical profile to reduce snap
UL: 1691, 508 - 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Single or double set screw or crimp tube termination
NEMA 3R rated for outdoor use when mated
Designed with cylindrical profile to reduce snap
UL: 1691, 508 - 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Main Features
- 90-Degree Female Panel Receptacle
- Threaded Stud Termination, 1.125"
- Cam-Type, Taper Nose Design
- 400 Amp Max Current Capacity
- Cable Range: #2 to 4/0 AWG
- Rhino-Hide for Indoor/Outdoor Use
- Easy Assembly/Disassembly
- NEMA 3R Rated for Outdoor Use
- UL 1691, 508 Certified
- Color-Coded for Phase Identification
General Information
Name: Leviton 16R24-1UG 16 Series Female Panel Receptacle, 90-Degree, Threaded Stud Termination, 1.125"
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Connectors
UPC Code:
Country of Origin: .Country of origin is subject to change.
Specifications
ADI Part Number LV-16R241UG Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 16R241UG Product Line Rhino-Hide Product Name Female Receptacle, 90-Degree, #2 - 4/0 AWG, 1.125 L Threaded Stud Termination Product Series 16 Product Type Power Socket
Color Green
Country of Origin MX
