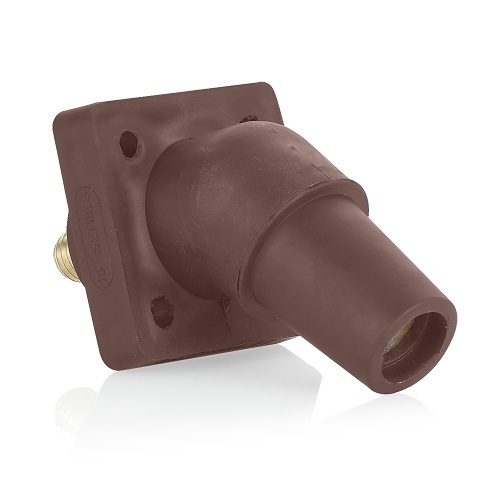

Leviton 16R30-UH Female Panel Receptacle, Taper Nose, 45°, 2-4/0AWG, 0.75" Threaded Stud, Brown
16R30-UH
|LV-16R30UH
Shop All Leviton
Leviton 16R30-UH Female Panel Receptacle, Taper Nose, 45°, 2-4/0AWG, 0.75" Threaded Stud, Brown
16R30-UH | LV-16R30UH
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
16 Series Female Panel Receptacle, Cam-Type, 45- Degree, Threaded Stud, Taper Nose, Cable Range- #2 to 4/0 AWG, 400 Amp Max, Brown Leviton's Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
Single or double set screw or crimp tube termination
NEMA 3R rated for outdoor use when mated
Designed with cylindrical profile to reduce snap
UL: 1691, 508 - 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Single or double set screw or crimp tube termination
NEMA 3R rated for outdoor use when mated
Designed with cylindrical profile to reduce snap
UL: 1691, 508 - 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Main Features
- 16 Series Female Panel Receptacle
- Cam-Type, 45-Degree, Threaded Stud
- Cable Range: #2 to 4/0 AWG
- 400 Amp Maximum Capacity
- Rhino-Hide Single Pole Connectors
- Easy Assembly and Disassembly
- NEMA 3R Rated for Outdoor Use
- Cylindrical Profile Reduces Snap
- UL: 1691, 508 - 35k A / 600V Rated
- Color-Coded for Phase Identification
General Information
Name: Leviton 16R30-UH Female Panel Receptacle, Taper Nose, 45°, 2-4/0AWG, 0.75" Threaded Stud, Brown
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Connectors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-16R30UH Brand Name Leviton Country of Origin MX Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 16R30-UH Product Line Rhino-Hide Product Name Rhino-Hide Power Socket Product Series 16 Product Type Power Socket
Certifications & Standards CSA Standard : 1691UL : 1691
Color Brown
Current Rating 400.00A Voltage Rating 600V AC
