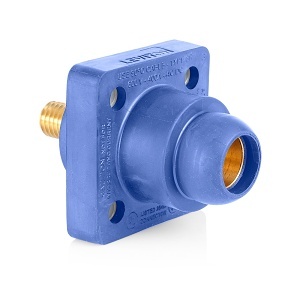

Leviton 18R22-UB Female Panel Receptacle, Ball Nose, 90°, 2-4/0AWG, 0.75" Threaded Stud, Blue
18R22-UB | LV-18R22UB
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
18 Series Single Pole Cam Type Female Panel Receptacle, Ball Nose, .75" Threaded Stud Termination, 90 Degrees, Cable Range #2 - 4/0, 400 Amp Max, Blue Leviton's Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
Single or double set screw termination
NEMA 3R rated for outdoor use when mated
UL: 1691, 508 - 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Single or double set screw termination
NEMA 3R rated for outdoor use when mated
UL: 1691, 508 - 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Main Features
- Female Panel Receptacle with Ball Nose Design
- 90° Angle for Versatile Installation
- Supports Cable Range #2 - 4/0
- 0.75" Threaded Stud Termination
- 400 Amp Maximum Capacity
- Rhino-Hide for Durability
- Easy Assembly and Disassembly
- NEMA 3R Rated for Outdoor Use
- UL 1691, 508 Certified
- Color-Coded for Phase Identification
General Information
Name: Leviton 18R22-UB Female Panel Receptacle, Ball Nose, 90°, 2-4/0AWG, 0.75" Threaded Stud, Blue
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs
UPC Code:
Country of Origin: .Country of origin is subject to change.
Specifications
ADI Part Number LV-18R22UB Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 18R22UB Product Line Rhino-Hide Product Name Rhino-Hide Power Socket Product Series 18 Product Type Power Socket
Color Blue
Current Rating 400 A Voltage Rating 600V AC
Certifications & Standards CSA Certified : File 152105UL Listed : File E-13399; 1691 Country of Origin MX
