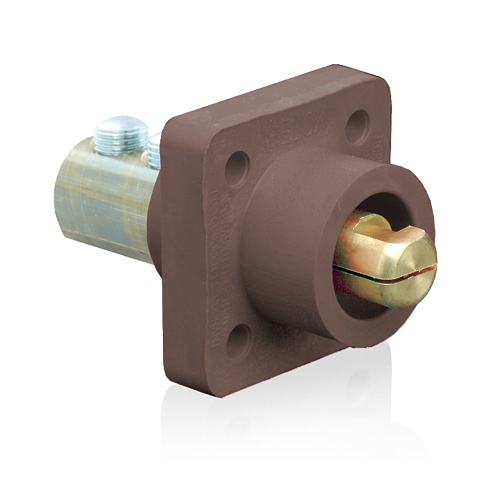

Leviton 18R23-UH Male Panel Receptacle, 90°, 2/0-4/0AWG, Double Set Screw, Brown
18R23-UH
|LV-18R23UH
Shop all Leviton
Leviton 18R23-UH Male Panel Receptacle, 90°, 2/0-4/0AWG, Double Set Screw, Brown
18R23-UH | LV-18R23UH
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
18 Series Cam-Type Male Panel Mount Receptacle, 90-Degree, Double Set Screw Termination, 2/0 - 4/0 AWG, 400 Amp Max, Brown Leviton's Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
Single or double set screw termination
NEMA 3R rated for outdoor use when mated
UL: 1691, 508 - 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Single or double set screw termination
NEMA 3R rated for outdoor use when mated
UL: 1691, 508 - 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Main Features
- 90° Male Panel Receptacle
- Supports 2/0-4/0 AWG
- Double Set Screw Termination
- 400 Amp Maximum Capacity
- NEMA 3R Rated for Outdoor Use
- UL 1691, 508 Certified
- Color-coded for Phase Identification
- Ideal for Temporary Power Applications
- Ideal for Entertainment, Oil and Gas, Mining
- Suitable for Temporary Power Applications
General Information
Name: Leviton 18R23-UH Male Panel Receptacle, 90°, 2/0-4/0AWG, Double Set Screw, Brown
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-18R23UH Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 18R23-UH Product Line Rhino-Hide Product Name Male Receptacle, 90-Degree, 2/0 - 4/0 AWG, Double Set Screw Termination Product Series 18 Product Type Power Socket
Color Brown
Current Rating 400 A Voltage Rating 600V AC
Certifications & Standards UL/CSA Country of Origin MX
